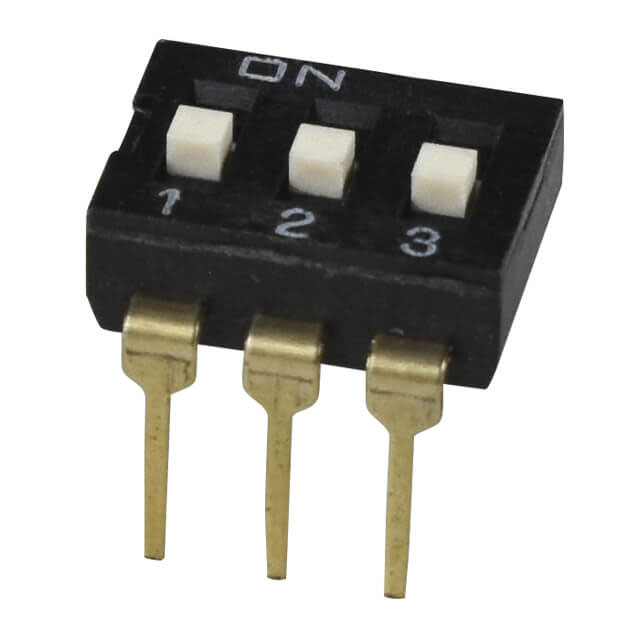

DS04-254-1S-03BK

Active

CUI Devices

SWITCH: DIP-SWITCH; POLES NUMBER: 3; OFF-ON; 0.025A/24VDC; POS: 2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS04-254-1S-03BK

Active

CUI Devices

SWITCH: DIP-SWITCH; POLES NUMBER: 3; OFF-ON; 0.025A/24VDC; POS: 2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS04-254-1S-03BK

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate (PBT)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	4.21 mm
Height Above Board	0.166 "
Length	8.62 mm
Length	0.339 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

ds04-254-smt Series

Part	Actuator Type	Electrical Life	Number of Positions	Body Material	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Mounting Type	Voltage Rating	Circuit	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Height Above Board [z]	Height Above Board [z]	Contact Material	Current Rating (Amps)	Termination Style	Length	Height Above Board	Height Above Board	Length
CUI Devices DS04-254-2-04BK-SMT-TR	Slide (Standard)	2000 Steps	4	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	11.16 mm	0.439 in	Surface Mount	24 VDC	SPST	Flush Recessed	85 °C	-40 °C	Gold	0.167 in	4.25 mm	Copper Alloy	25 mA	Gull Wing
CUI Devices DS04-254-2-07BK-SMT-TR	Slide (Standard)	2000 Steps	7	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm		0.739 in	Surface Mount	24 VDC	SPST	Flush Recessed	85 °C	-40 °C	Gold	0.167 in	4.25 mm	Copper Alloy	25 mA	Gull Wing	18.78 mm
CUI Devices DS04-254-1S-01BK	Slide (Standard)	2000 Steps	1	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	3.54 mm	0.139 in	Through Hole	24 VDC	SPST	Raised	85 °C	-40 °C	Gold			Copper Alloy	25 mA	PC Pin		4.21 mm	0.166 "
CUI Devices DS04-254-1S-03BK	Slide (Standard)	2000 Steps		Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm			Through Hole	24 VDC	SPST	Raised	85 °C	-40 °C	Gold			Copper Alloy	25 mA	PC Pin	8.62 mm	4.21 mm	0.166 "	0.339 in
CUI Devices DS04-254-2-05BK-SMT	Slide (Standard)	2000 Steps		Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm			Surface Mount	24 VDC	SPST	Flush Recessed	85 °C	-40 °C	Gold	0.167 in	4.25 mm	Copper Alloy	25 mA	Gull Wing
CUI Devices DS04-254-1L-01BK	Slide (Standard)	2000 Steps	1	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	3.54 mm	0.139 in	Through Hole	24 VDC	SPST	Raised	85 °C	-40 °C	Gold			Copper Alloy	25 mA	PC Pin		4.21 mm	0.166 "
CUI Devices DS04-254-2L-01BK	Slide (Standard)	2000 Steps	1	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	3.54 mm	0.139 in	Through Hole	24 VDC	SPST	Flush Recessed	85 °C	-40 °C	Gold			Copper Alloy	25 mA	PC Pin		3.66 mm	0.144 in
CUI Devices DS04-254-2-06BK-SMT-TR	Slide (Standard)	2000 Steps	6	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm			Surface Mount	24 VDC	SPST	Flush Recessed	85 °C	-40 °C	Gold	0.167 in	4.25 mm	Copper Alloy	25 mA	Gull Wing	16.24 mm			0.639 in
CUI Devices DS04-254-2L-12BK	Slide (Standard)	2000 Steps	12	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm	31.48 mm	1.239 in	Through Hole	24 VDC	SPST	Flush Recessed	85 °C	-40 °C	Gold			Copper Alloy	25 mA	PC Pin		3.66 mm	0.144 in
CUI Devices DS04-254-2S-07BK	Slide (Standard)	2000 Steps	7	Polybutylene Terephthalate (PBT)	0.1 in	Full	2.54 mm		0.739 in	Through Hole	24 VDC	SPST	Flush Recessed	85 °C	-40 °C	Gold			Copper Alloy	25 mA	PC Pin	18.78 mm	3.66 mm	0.144 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 0.42

Description

General part information

ds04-254-smt Series

Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
