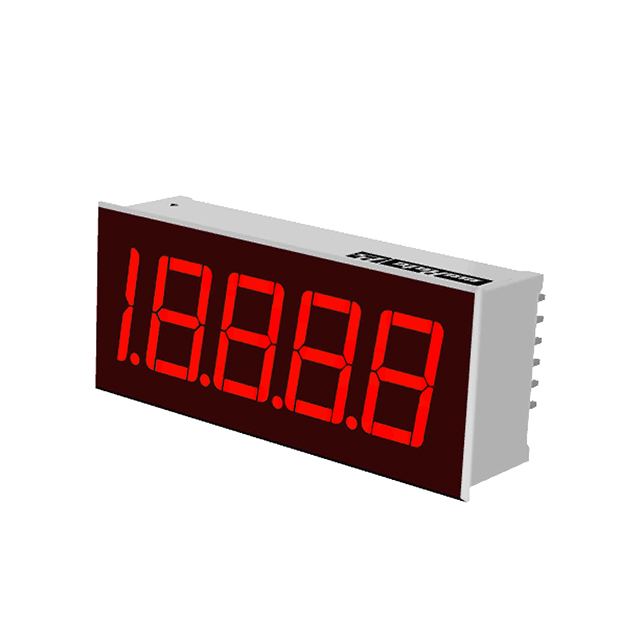

DSD-40BCD-RL-C

Obsolete

Murata Power Solutions Inc.

DISP 7SEG 0.52" 4.5DIG RED MOD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DISP 7SEG 0.52" 4.5DIG RED MOD

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Test	Package / Case	Display Type	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Wavelength - Peak	Color	Power Dissipation (Max) [Max]	Voltage - Forward (Vf) (Typ)
Murata Power Solutions Inc. DSD-40BCD-RL-C	0.56 in	0.92 "	2.17 in	55.12 mm	23.37 mm	14.22 mm	35 mA	Module	7-Segment	13.21 mm	0.52 in	4.5	630 nm	Red
Murata Power Solutions Inc. DSD-40BCD-GS-C	0.56 in	0.92 "	2.17 in	55.12 mm	23.37 mm	14.22 mm	35 mA	Module	7-Segment	13.21 mm	0.52 in	4.5	565 nm	Green
Murata Power Solutions Inc. DSD-40BCD-RS-C	0.56 in	0.92 "	2.17 in	55.12 mm	23.37 mm	14.22 mm	85 mA	Module	7-Segment	13.2 mm	0.52 in	4.5	635 nm	Red	175 mW	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Display Modules - LED Character and Numeric Red 7-Segment 4.5 Character 35mA 0.920" H x 2.170" W x 0.560" D (23.37mm x 55.12mm x 14.22mm) Module
