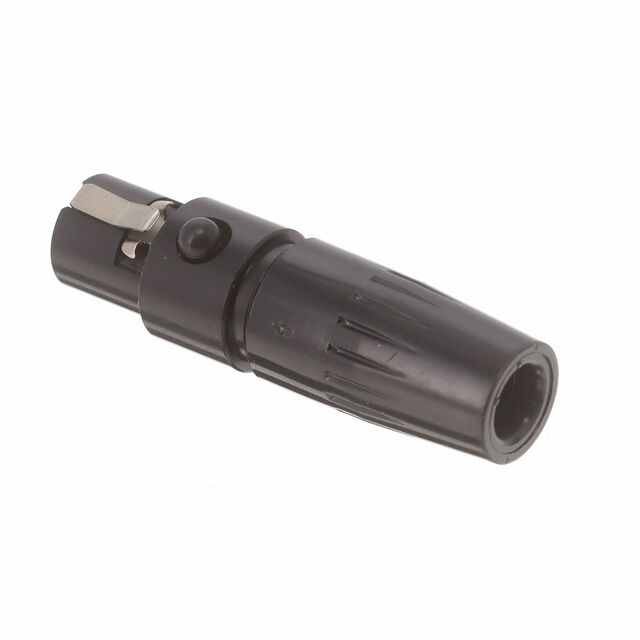

TA5FLBX
ActiveSwitchcraft Inc.
CONN PLUG FMALE MINI XLR 5P SLDR
Deep-Dive with AI
Search across all available documentation for this part.
TA5FLBX
ActiveSwitchcraft Inc.
CONN PLUG FMALE MINI XLR 5P SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TA5FLBX |
|---|---|
| Applications | Audio |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [custom] | 4.83 mm, 2.92 mm, 0.19 in, 0.115 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Fastening Type | Latch Lock |
| Features | Cable Clamp, Backshell |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Copper Alloy |
| Shell Size - Insert | Mini XLR |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.94 | |
| 10 | $ 15.55 | |||
| 100 | $ 12.82 | |||
Description
General part information
TA5FLB Series
5 Position Circular Connector Plug, Female Sockets Solder
