R125303000

Active

Radiall USA, Inc.

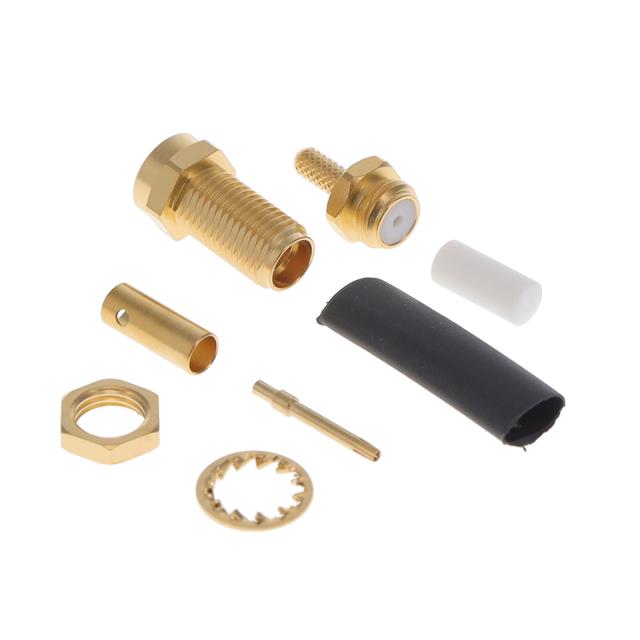

SMA F STR BHD CR SD 2.6/50S

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR BHD CR SD 2.6/50S

Technical Specifications

Parameters and characteristics for this part

Specification	R125303000

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Center Contact Material	Center Contact Plating	Dielectric Material	Impedance	Frequency - Max [Max]	Body Finish	Connector Type	Includes	Connector Style	Housing Color	Mounting Feature	Voltage Rating	Shield Termination	Contact Termination	Number of Ports	Cable Group	Mating Cycles	Body Material	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. R125303000	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	12.4 GHz	Gold	Female Socket Jack	1 Connector 1 Lockwasher 1 Nut	SMA	Gold	Bulkhead - Front Side Nut	250 VDC	Crimp	Solder	1	316 RG-174	500	Stainless Steel	-65 ░C	165 °C
Radiall USA, Inc. R125303001	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	12.4 GHz		Female Socket Jack		SMA	Silver	Bulkhead - Front Side Nut	250 VDC	Crimp	Solder	1	316 RG-188	500	Stainless Steel	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
