6424R-343

Active

ebm-papst Inc.

DC AXIAL FAN, 24 V, RECTANGULAR WITH ROUNDED ENDS, 172 MM, 51 MM, BALL BEARING, 241.3 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

6424R-343

Active

ebm-papst Inc.

DC AXIAL FAN, 24 V, RECTANGULAR WITH ROUNDED ENDS, 172 MM, 51 MM, BALL BEARING, 241.3 CFM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6424R-343

Air Flow	6.75 mł/min
Air Flow	241 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Metal
Noise	57 dB
Power (Watts)	18 W
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	171.5 mm
Size / Dimension [z]	150.4 mm
Termination	2 Terminals
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Weight	816.5 g
Weight	1.8 lbs
Width [y]	2 "

6424 Series

Part	Approval Agency	Noise	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Voltage - Rated	RPM	Fan Type	Termination	Width [y]	Material - Frame	Air Flow	Air Flow	Features	Bearing Type	Static Pressure	Static Pressure	Current Rating (Amps)	Weight	Weight	Size / Dimension
ebm-papst Inc. 6424/2HP-210	CE CSA EAC UL VDE	63 dB	31.4 W	12 VDC	28 VDC	171.5 mm	150 mm	-20 °C	72 °C	-20 C	162 °F	Fiberglass Reinforced Nylon Polyamide (PA)	24 VDC	4270 RPM	Tubeaxial	4 Position Rectangular Connector	2 "	Aluminum	288.6 CFM	8.08 mł/min	Auto Restart Locked Rotor Sensor PWM Control Speed Sensor (Tach)	Ball	245.1 Pa	0.984 in H2O	1.31 A
ebm-papst Inc. 6424R-343		57 dB	18 W	12 VDC	28 VDC	171.5 mm	150.4 mm					Plastic	24 VDC		Tubeaxial	2 Terminals	2 "	Metal	241 CFM	6.75 mł/min		Ball				816.5 g	1.8 lbs	Rectangular/Rounded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 113.62
		10	$ 102.11
		25	$ 100.68
		50	$ 94.20
		100	$ 92.05

Description

General part information

6424 Series

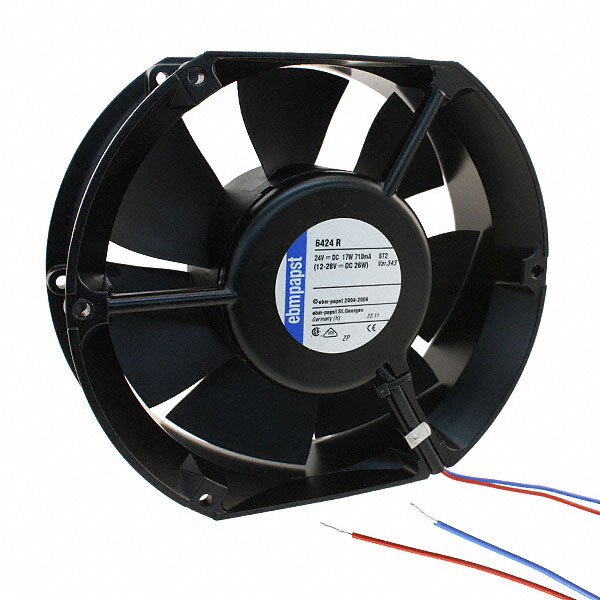

The 6424R-343 is a 24VDC Axial Fan with a ball bearing and plastic impeller. This 6400 series DC fan features metal housing, rotational direction is counter clock wise direction looking at rotor and the air exhaust over struts. The electrical connection is via leaded wire cables (- GND refers to blue wire and + UB refers to red wire).
