19130 010250

Active

Belden Inc.

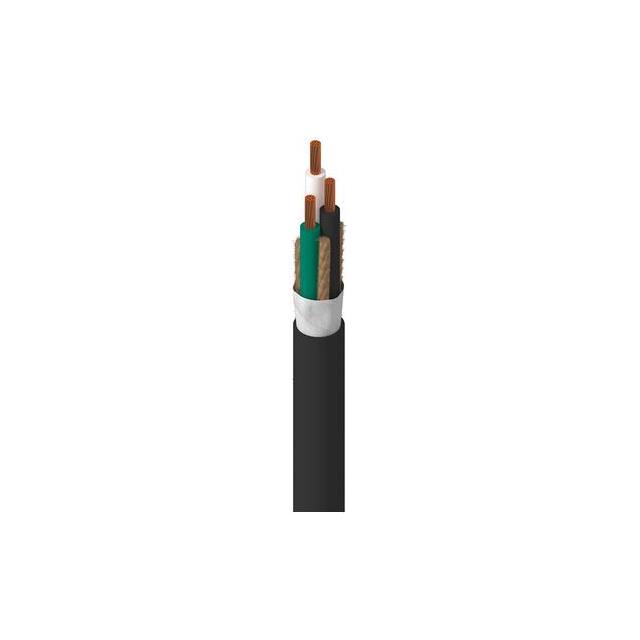

CABLE 3COND 16AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	19130 010250

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Jacket (Insulation) Material	Rubber
Jacket (Insulation) Thickness	1.118 mm
Jacket (Insulation) Thickness	0.044 in
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Ratings	UL Style SJ
Usage	Cord and Cordset
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Conductor Insulation	Ratings	Usage	Number of Conductors	Conductor Material	Wire Gauge	Cable Type	Jacket (Insulation) Material	Voltage
Belden Inc. 19130 010250	30 AWG	26	Black	1.118 mm	0.044 in	3000 "	76.2 m	Ethylene Propylene Terpolymer Rubber (EPDM)	UL Style SJ	Cord and Cordset	3	Copper Bare	16 AWG	Multi-Conductor	Rubber	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 5.32
LCSC	Piece	1	$ 2.06

General part information

3 Conductor Multi-Conductor Cable Black 16 AWG 250.0' (76.2m)
