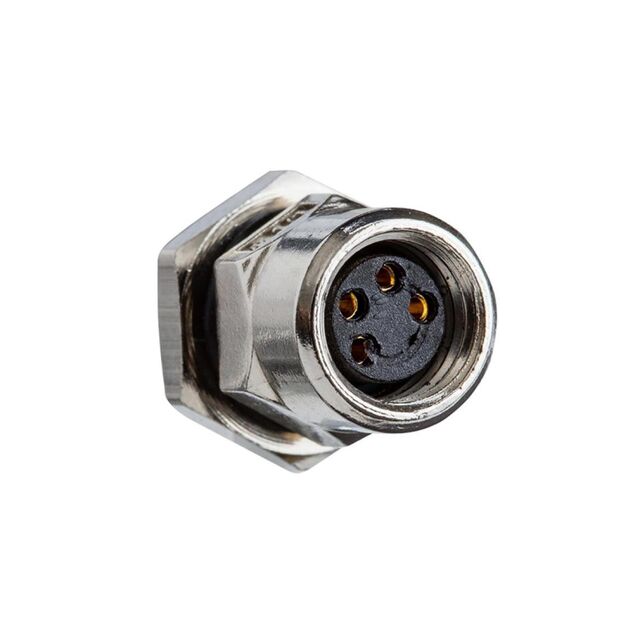

8A-05PFFS-SH7001
ActiveAmphenol LTW
M8 CONN WITH KEY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8A-05PFFS-SH7001
ActiveAmphenol LTW
M8 CONN WITH KEY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8A-05PFFS-SH7001 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M8-5 |
| Shielding | Shielded |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.02 | |
| 10 | $ 7.25 | |||
| 100 | $ 6.35 | |||
| 1000 | $ 4.68 | |||
Description
General part information
8A-05PFFS Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
