896-046-558-201

Active

EDAC Inc.

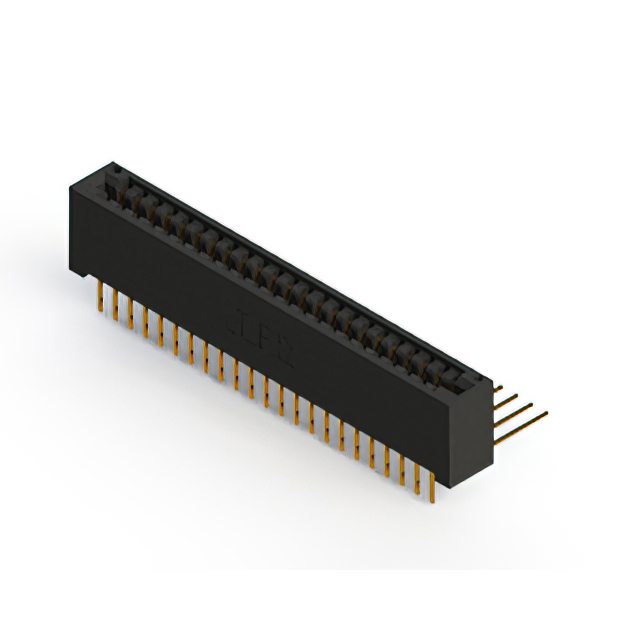

3.18MM RIGHT-ANGLE 46P -40℃~+125℃ PUSH-PULL,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-046-558-201

Active

EDAC Inc.

3.18MM RIGHT-ANGLE 46P -40℃~+125℃ PUSH-PULL,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-046-558-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	46
Number of Positions/Bay/Row [custom]	23
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

896-046 Series

...

Part	Read Out	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Card Type	Mounting Type	Number of Rows	Number of Positions	Contact Material	Contact Type	Termination Rows	Color	Material - Insulation	Pitch [x]	Pitch [x]	Termination	Contact Finish	Gender	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 896-046-558-112	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	46	Non Specified - Single Edge	Through Hole Right Angle	1	46	Copper Alloy	Cantilever	1	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Solder	Gold	Female	10 Áin	0.25 Ám	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 896-046-500-808	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	23	Non Specified - Dual Edge	Through Hole	2	46	Copper Alloy	Cantilever	2	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Solder Eyelet(s)	Gold	Female	10 Áin	0.25 Ám		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 896-046-540-607	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	46	Non Specified - Single Edge	Through Hole	1	46	Copper Alloy	Cantilever	1	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Wire Wrap	Gold	Female	10 Áin	0.25 Ám		M3 Threaded Insert Top Mount Opening
EDAC Inc. 896-046-522-104	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	46	Non Specified - Single Edge	Through Hole	1	46	Copper Alloy	Cantilever	1	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Solder	Gold	Female	10 Áin	0.25 Ám	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 896-046-555-207	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	23	Non Specified - Dual Edge	Board Edge Straddle Mount	2	46	Copper Alloy	Cantilever	2	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Solder Eyelet(s)	Gold	Female	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening		Card Extender
EDAC Inc. 896-046-521-812	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	23	Non Specified - Dual Edge	Through Hole	2	46	Copper Alloy	Cantilever	2	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Solder	Gold	Female	10 Áin	0.25 Ám		Side Mount Opening Unthreaded			3.25 mm	0.128 in
EDAC Inc. 896-046-556-802	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	23	Non Specified - Dual Edge	Board Edge Straddle Mount	2	46	Copper Alloy	Cantilever	2	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Solder	Gold	Female	10 Áin	0.25 Ám				Card Extender	3.25 mm	0.128 in
EDAC Inc. 896-046-558-102	Single	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	46	Non Specified - Single Edge	Through Hole Right Angle	1	46	Copper Alloy	Cantilever	1	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Solder	Gold	Female	10 Áin	0.25 Ám	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 896-046-541-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	23	Non Specified - Dual Edge	Through Hole	2	46	Copper Alloy	Cantilever	2	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Wire Wrap	Gold	Female	10 Áin	0.25 Ám
EDAC Inc. 896-046-558-201	Dual	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	23	Non Specified - Dual Edge	Through Hole Right Angle	2	46	Copper Alloy	Cantilever	2	Black	Polyphenylene Sulfide (PPS)	0.125 in	3.18 mm	Solder	Gold	Female	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 64.89
LCSC	Piece	1	$ 34.81
		200	$ 13.47
		500	$ 13.00
		1000	$ 12.76

Description

General part information

896-046 Series

46 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
