MB420L_R1_00001

Active

Panjit International Inc.

ULTRA LOW VF SCHOTTKY BARRIER RE

Search across all available documentation for this part.

Active

Panjit International Inc.

ULTRA LOW VF SCHOTTKY BARRIER RE

Technical Specifications

Parameters and characteristics for this part

Specification	MB420L_R1_00001

Capacitance @ Vr, F	80 pF
Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SMC, DO-214AB
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AB (SMC)
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	860 mV

Part	Package / Case	Mounting Type	Technology	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Speed	Supplier Device Package	Current - Reverse Leakage @ Vr
Panjit International Inc. MB420L_R1_00001	DO-214AB SMC	Surface Mount	Schottky	80 pF	150 °C	-55 °C	4 A	200 V	35 ns	860 mV	200 mA 500 ns	DO-214AB (SMC)	5 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

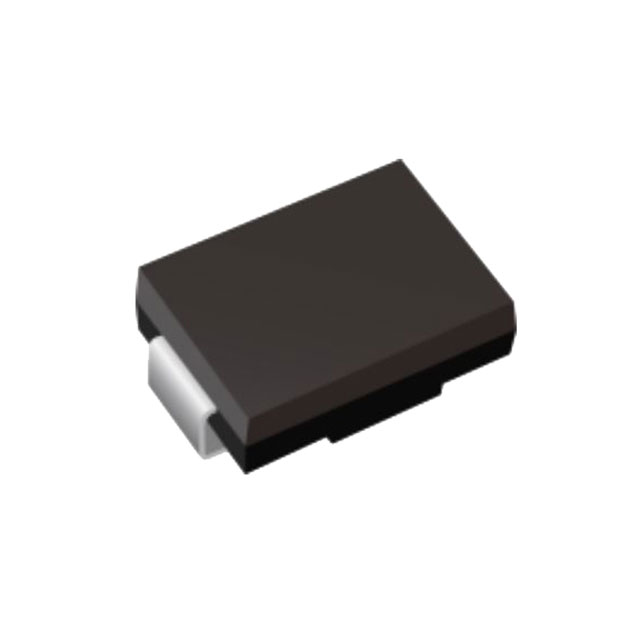

Diode 200 V 4A Surface Mount DO-214AB (SMC)
