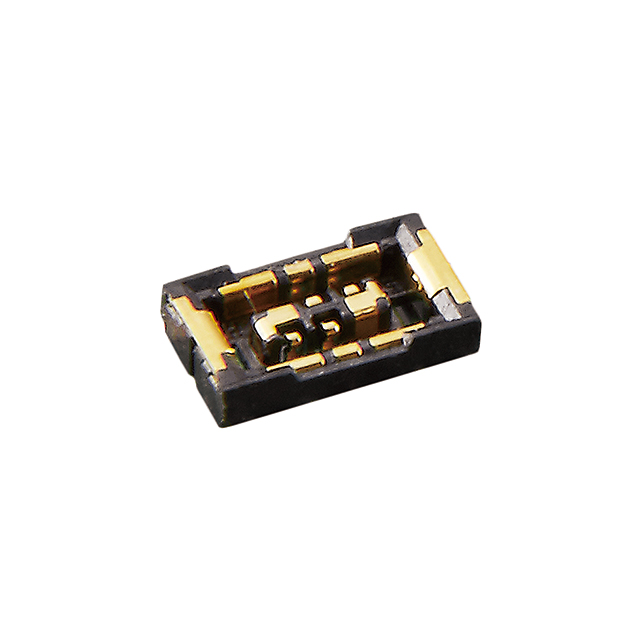

BM29B0.6-2DS/2-0.35V(53)

Active

Hirose Electric USA, Inc.

CONN RCPT 2POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBM29 Series Flyer~

BM29B0.6-2DS/2-0.35V(53)

Active

Hirose Electric USA, Inc.

CONN RCPT 2POS SMD GOLD

Deep-Dive with AI

DocumentsBM29 Series Flyer~

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM29B0.6-2DS/2-0.35V(53)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Height Above Board	0.024 in
Height Above Board	0.61 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	4
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

BM29B Series

Part	Number of Rows	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Mounting Type	Connector Type	Height Above Board	Height Above Board	Height Above Board [z]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Features
Hirose Electric USA, Inc. BM29B0.6-4DS/2-0.35V(51)	2	0.6 mm	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	4	Surface Mount	Center Strip Contacts Receptacle	0.024 in	0.61 mm
Hirose Electric USA, Inc. BM29B-4DP/2-0.35V(53)	2	0.6 mm	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	4	Surface Mount	Header Outer Shroud Contacts		0.41 mm	0.016 "
Hirose Electric USA, Inc. BM29B0.6-6DS/2-0.35V(53)	2	0.6 mm	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold		Surface Mount	Center Strip Contacts Receptacle	0.024 in	0.61 mm		8	6	2
Hirose Electric USA, Inc. BM29B0.6-2DS/2-0.35V(53)	2	0.6 mm			0.35 mm	0.014 in	Gold	4	Surface Mount	Center Strip Contacts Receptacle	0.024 in	0.61 mm
Hirose Electric USA, Inc. BM29B-4DP/2-0.35V(51)	2	0.6 mm	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold		Surface Mount	Header Outer Shroud Contacts		0.41 mm	0.016 "	6	4	2
Hirose Electric USA, Inc. BM29B-6DP/2-0.35V(53)	2	0.6 mm	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold		Surface Mount	Header Outer Shroud Contacts		0.41 mm	0.016 "	8	6	2
Hirose Electric USA, Inc. BM29B0.6-24DS/2-0.35V(53)	2	0.6 mm	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold		Surface Mount	Center Strip Contacts Receptacle	0.024 in	0.61 mm
Hirose Electric USA, Inc. BM29B-2DP/2-0.35V(51)	2	0.6 mm			0.35 mm	0.014 in	Gold	4	Surface Mount	Header Outer Shroud Contacts		0.41 mm	0.016 "
Hirose Electric USA, Inc. BM29B0.6-6DS/2-0.35V(51)	2	0.6 mm	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold		Surface Mount	Center Strip Contacts Receptacle	0.024 in	0.61 mm		8	6	2	Solder Retention
Hirose Electric USA, Inc. BM29B0.6-4DS/2-0.35V(53)	2	0.6 mm	1.97 Áin	0.05 Ám	0.35 mm	0.014 in	Gold	4	Surface Mount	Center Strip Contacts Receptacle	0.024 in	0.6 mm					Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.03
		10	$ 0.88
		25	$ 0.82
		50	$ 0.78
		100	$ 0.74
		250	$ 0.70
		500	$ 0.66
	Digi-Reel®	1	$ 1.03
		10	$ 0.84
		25	$ 0.77
		50	$ 0.73
		100	$ 0.68
		250	$ 0.63
		500	$ 0.59
	Tape & Reel (TR)	1000	$ 0.63
		2000	$ 0.60
		3000	$ 0.58
		5000	$ 0.56
		7000	$ 0.55
		10000	$ 0.54

Description

General part information

BM29B Series

4 (2 + 2 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

BM29 Series Flyer~

Datasheet
