940-99-020-24-000000

Obsolete

Mill-Max Manufacturing Corp.

CONN SOCKET PLCC 20POS TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

940-99-020-24-000000

Obsolete

Mill-Max Manufacturing Corp.

CONN SOCKET PLCC 20POS TIN-LEAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	940-99-020-24-000000

Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Contact Resistance	30 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	5
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.3 mm
Termination Post Length	0.13 in
Type	PLCC

940-99 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Current Rating (Amps)	Contact Material - Post	Contact Finish - Post	Contact Material - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Resistance	Features	Material Flammability Rating	Type	Mounting Type	Housing Material	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Termination Post Length	Termination Post Length
Mill-Max Manufacturing Corp. 940-99-084-17-400000	2.54 çm	100 çin	Tin-Lead	1 A	Brass Alloy	Tin-Lead	Beryllium Copper	Solder	-55 °C	125 °C	200 µin	5.08 µm	30 mOhm	Closed Frame	UL94 V-0	PLCC	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.27 mm	0.05 in	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 940-99-044-17-400000	2.54 çm	100 çin	Tin-Lead	1 A	Brass Alloy	Tin-Lead	Beryllium Copper	Solder	-55 °C	125 °C	200 µin	5.08 µm	30 mOhm	Closed Frame	UL94 V-0	PLCC	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.27 mm	0.05 in	0.05 in	1.27 mm	4 11	44
Mill-Max Manufacturing Corp. 940-99-020-24-000000	2.54 çm	100 çin	Tin-Lead	1 A	Brass Alloy	Tin-Lead	Beryllium Copper	Solder	-55 °C	125 °C	200 µin	5.08 µm	30 mOhm	Closed Frame	UL94 V-0	PLCC	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	2.54 mm				0.1 in	5	20	4	3.3 mm	0.13 in
Mill-Max Manufacturing Corp. 940-99-084-24-000000	2.54 çm	100 çin	Tin-Lead	1 A	Brass Alloy	Tin-Lead	Beryllium Copper	Solder	-55 °C	125 °C	200 µin	5.08 µm	30 mOhm	Closed Frame	UL94 V-0	PLCC	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	2.54 mm				0.1 in				3.3 mm	0.13 in
Mill-Max Manufacturing Corp. 940-99-052-17-400000	2.54 çm	100 çin	Tin-Lead	1 A	Brass Alloy	Tin-Lead	Beryllium Copper	Solder	-55 °C	125 °C	200 µin	5.08 µm	30 mOhm	Closed Frame	UL94 V-0	PLCC	Surface Mount	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.27 mm	0.05 in	0.05 in	1.27 mm
Mill-Max Manufacturing Corp. 940-99-052-24-000000	2.54 çm	100 çin	Tin-Lead	1 A	Brass Alloy	Tin-Lead	Beryllium Copper	Solder	-55 °C	125 °C	200 µin	5.08 µm	30 mOhm	Closed Frame	UL94 V-0	PLCC	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.54 mm	0.1 in	2.54 mm				0.1 in				3.3 mm	0.13 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

940-99 Series

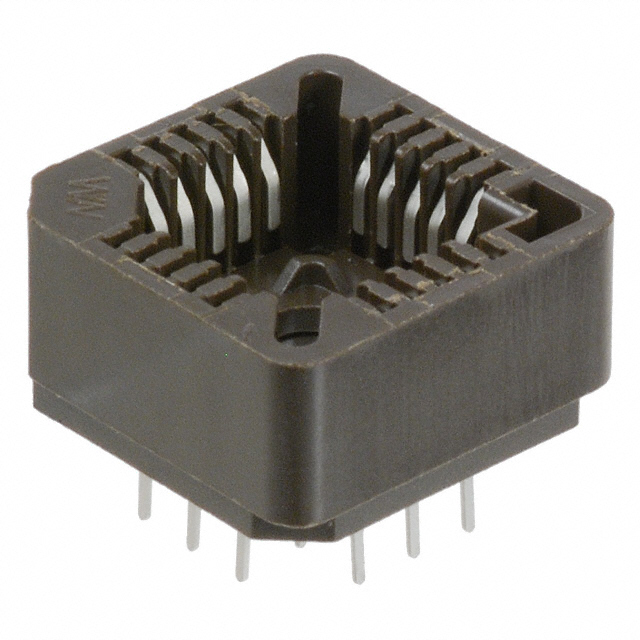

20 (4 x 5) Pos PLCC Socket Tin-Lead Through Hole
