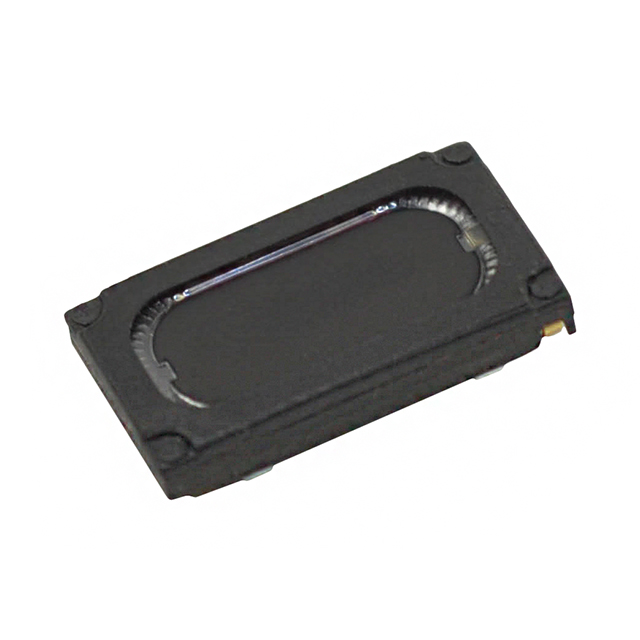

CMS-16098A-SP

Active

CUI Devices

SPEAKER 8OHM 800MW TOP PORT 88DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 800MW TOP PORT 88DB

Technical Specifications

Parameters and characteristics for this part

Specification	CMS-16098A-SP

Efficiency - dBA	88 dBA
Efficiency - Testing	800mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	550 Hz
Frequency Range [Max]	10 kHz
Frequency Range [Min]	467.5 Hz
Height - Seated (Max)	3 mm
Height - Seated (Max) [Max]	0.118 in
Impedance	8 Ohms
Material - Cone	Polyester, Polyethylene Terephthalate (PET)
Material - Magnet	Nd-Fe-B
Port Location	Top
Power - Max [Max]	1 W
Power - Rated	0.8 W
Shape	Rectangular
Size / Dimension [x]	0.63 "
Size / Dimension [x]	16 mm
Size / Dimension [y]	9 mm
Size / Dimension [y]	0.354 in
Technology	Magnetic
Termination	Spring Type
Type	Low Profile

Part	Shape	Port Location	Material - Cone	Impedance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Power - Rated	Efficiency - Type	Power - Max [Max]	Termination	Efficiency - Testing	Frequency Range [Max]	Frequency Range [Min]	Material - Magnet	Technology	Efficiency - dBA	Height - Seated (Max)	Height - Seated (Max) [Max]	Type	Frequency - Self Resonant
CUI Devices CMS-16098A-SP	Rectangular	Top	Polyester Polyethylene Terephthalate (PET)	8 Ohms	9 mm	0.354 in	0.63 "	16 mm	0.8 W	Sound Pressure Level (SPL)	1 W	Spring Type	800mW/100mm	10 kHz	467.5 Hz	Nd-Fe-B	Magnetic	88 dBA	3 mm	0.118 in	Low Profile	550 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms Low Profile Speaker 800 mW 467.5 Hz ~ 10 kHz Top Rectangular
