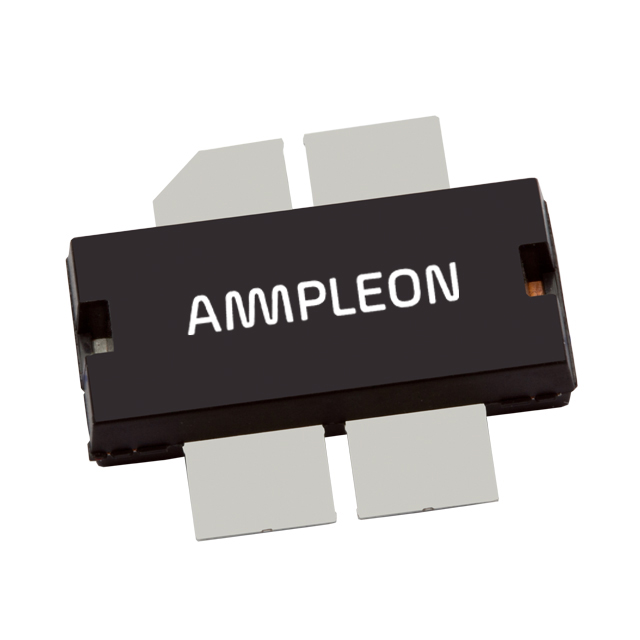

BLP05M7200Y

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V 4HSOP

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V 4HSOP

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [y]	Gain	Current - Test	Voltage - Test	Mounting Type	Voltage - Rated	Frequency	Power - Output	Configuration
Ampleon USA Inc. BLP05H635XRGY	4-HSOP	4-BESOP	4.4 mm	0.173 in	27 dB	10 mA	50 V	Surface Mount	135 V	108 MHz	35 W	Common Source Dual
Ampleon USA Inc. BLP05H6350XRY	4-HSOPF	SOT-1223-2			27 dB	100 mA	50 V	Surface Mount	135 V	108 MHz	350 W	Common Source Dual
Ampleon USA Inc. BLP05H6110XRY	4-HSOPF	SOT-1223-2			27 dB	20 mA	50 V	Surface Mount	135 V	108 MHz	110 W	Common Source Dual
Ampleon USA Inc. BLP05H6250XRGY	4-HSOP	4-BESOP	4.4 mm	0.173 in	27 dB	100 mA	50 V	Surface Mount	135 V	108 MHz	250 W	Common Source Dual
Ampleon USA Inc. BLP05H6150XRGY	4-HSOP	4-BESOP	4.4 mm	0.173 in	27 dB	100 mA	50 V	Surface Mount	135 V	108 MHz	150 W	Common Source Dual
Ampleon USA Inc. BLP05M7200Y	4-HSOP	4-HSOPF SOT-1138			21 dB	2 mA	28 V	Surface Mount	65 V	440 MHz	210 W	Common Source Dual
Ampleon USA Inc. BLP05H6350XRGY	4-HSOP	4-BESOP	4.4 mm	0.173 in	27 dB	100 mA	50 V	Surface Mount	135 V	108 MHz	350 W	Common Source Dual
Ampleon USA Inc. BLP05H635XRY	4-HSOPF	SOT-1223-2			27 dB	10 mA	50 V	Surface Mount	135 V	108 MHz	35 W	Common Source Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 2 mA 440MHz 21dB 210W 4-HSOP

Technical documentation and resources
