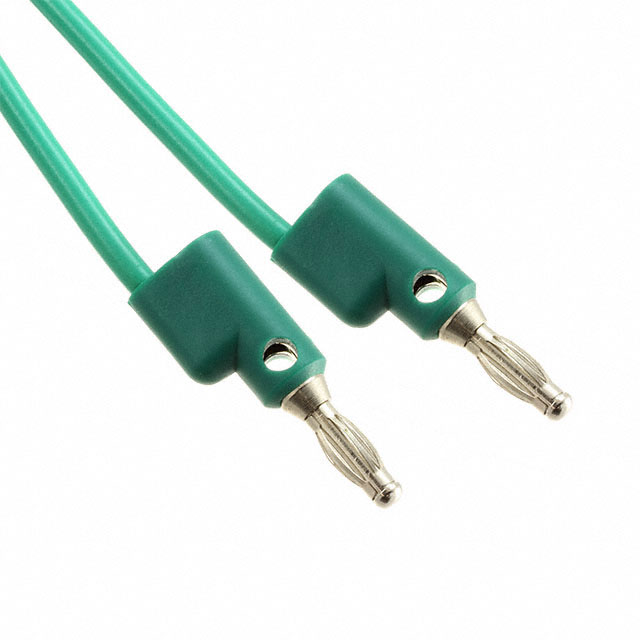

BU-PB24-5

Active

Mueller Electric Co

TEST LEAD BANANA TO BANANA 24"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BU-PB24-5

Active

Mueller Electric Co

TEST LEAD BANANA TO BANANA 24"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-PB24-5

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Banana Plug, Single, Stackable
Cable Length	24 "
Cable Length	609.6 mm
Configuration	Banana to Banana
Current Rating (Amps)	15 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	1 kV
Voltage - Rated	1000 V
Wire Gauge	18 AWG

BU-PB Series

Part	Cable Length	Cable Length	Voltage - Rated	Voltage - Rated	Stacking Method	Current Rating (Amps)	Type	1st Connector	Wire Gauge	Material - Insulation	2nd Connector	Configuration	Contents [custom]	Contents
Mueller Electric Co BU-PB24-5	24 "	609.6 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana
Mueller Electric Co BU-PB36-2	36 in	914.4 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana	1	Red
Mueller Electric Co BU-PB12-9	12 in	304.8 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana		1 Lead White
Mueller Electric Co BU-PB12-2	12 in	304.8 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana	1	Red
Mueller Electric Co BU-PB24-2	24 "	609.6 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana	1	Red
Mueller Electric Co BU-PB12-5	12 in	304.8 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana
Mueller Electric Co BU-PB48-5	48 in	1219.2 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana
Mueller Electric Co BU-PB60-0	5 ft	1524 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana		1 Lead Black
Mueller Electric Co BU-PB72-0	72 in	1828.8 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana		1 Lead Black
Mueller Electric Co BU-PB18-2	18 in	457.2 mm	1 kV	1000 V	Multi-Stacking Front and Vertical	15 A	Patch Cord	Banana Plug Single Stackable	18 AWG	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	Banana to Banana	1	Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.45
		10	$ 6.19
		100	$ 5.90
		500	$ 5.71
		1000	$ 5.41
Newark	Each	100	$ 10.00
		250	$ 9.16
		500	$ 8.51
		1000	$ 8.00

Description

General part information

BU-PB Series

24.0" (609.60mm) Banana Plug, Single, Stackable To Banana Plug, Single, Stackable Patch Cord 1000V (1kV)

Documents

Technical documentation and resources
