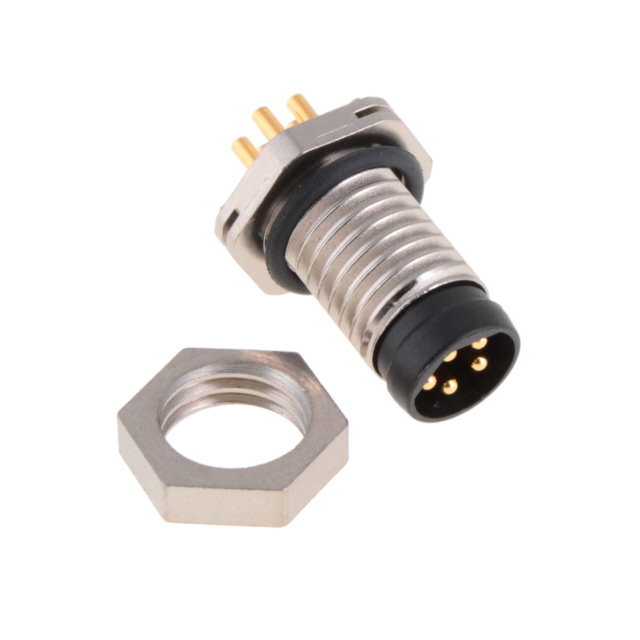

XS3MM52410

Active

Omron Electronics Inc-EMC Div

CONN PLUG MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN PLUG MALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	XS3MM52410

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-5
Shielding	Unshielded
Termination	Solder
Voltage Rating	30 VDC

Part	Insert Material	Voltage Rating	Contact Material	Mounting Type	Shielding	Color	Ingress Protection	Mounting Feature	Shell Finish	Primary Material	Termination	Shell Size - Insert	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Connector Type	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating
Omron Electronics Inc-EMC Div XS3MM52410	Polybutylene Terephthalate (PBT)	30 VDC	Brass	Panel Mount Through Hole	Unshielded	Silver	IP67 - Dust Tight Waterproof	Bulkhead - Front Side Nut	Nickel	Metal	Solder	M8-5	Keyed	16 Áin	0.41 Ám	Zinc Alloy	Male Pins Plug	3 A	Gold	-25 °C	85 °C	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Solder
