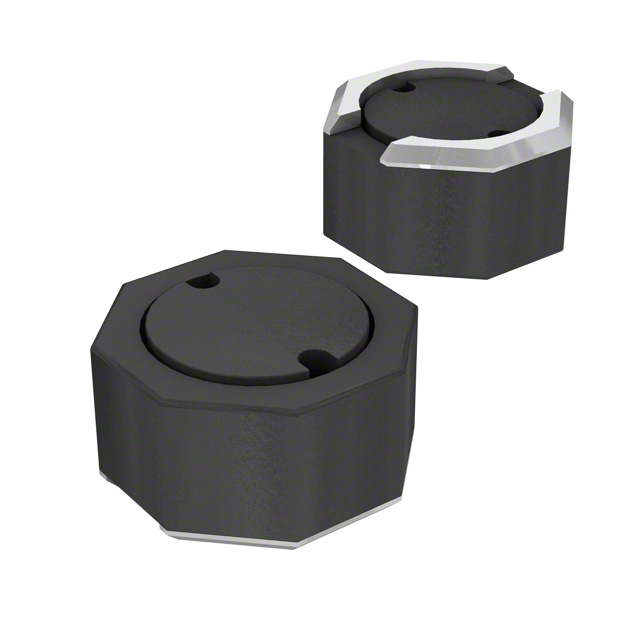

SRU2016-6R0Y

Active

Bourns Inc.

IND2.8X2.8X1.65MM,6UH30%0.9A,SHDSMD /TAPE & REEL - 7" REEL

Search across all available documentation for this part.

Active

Bourns Inc.

IND2.8X2.8X1.65MM,6UH30%0.9A,SHDSMD /TAPE & REEL - 7" REEL

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Current - Saturation (Isat)	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Type	Tolerance	Material - Core	Inductance	Q @ Freq	Frequency - Self Resonant	Mounting Type	DC Resistance (DCR) [Max]
Bourns Inc. SRU2016-470Y	Nonstandard	125 °C	-40 °C	1.65 Ohm	0.11 in	0.11 in	2.8 mm	2.8 mm	100 kHz	220 mA	Shielded	0.071 "	1.8 mm	0.31 A	Drum Core Wirewound	30 %	Ferrite	47 µH	2.52 MHz 15	20 MHz	Surface Mount
Bourns Inc. SRU2016-3R0Y	Nonstandard	125 °C	-40 °C		0.11 in	0.11 in	2.8 mm	2.8 mm	100 kHz	870 mA	Shielded	0.071 "	1.8 mm	1.5 A	Drum Core Wirewound	30 %	Ferrite	3 ÁH	7.96 MHz 8	90 MHz	Surface Mount	135 mOhm
Bourns Inc. SRU2016-6R0Y	Nonstandard	125 °C	-40 °C		0.11 in	0.11 in	2.8 mm	2.8 mm	100 kHz	630 mA	Shielded	0.071 "	1.8 mm	900 mA	Drum Core Wirewound	30 %	Ferrite	6 µH	7.96 MHz 9		Surface Mount	250 mOhm
Bourns Inc. SRU2016-330Y	Nonstandard	125 °C	-40 °C		0.11 in	0.11 in	2.8 mm	2.8 mm	100 kHz	290 mA	Shielded	0.071 "	1.8 mm	410 mA	Drum Core Wirewound	30 %	Ferrite	33 µH	2.52 MHz 12	20 MHz	Surface Mount	1.47 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 µH Shielded Drum Core, Wirewound Inductor 900 mA 250mOhm Max Nonstandard
