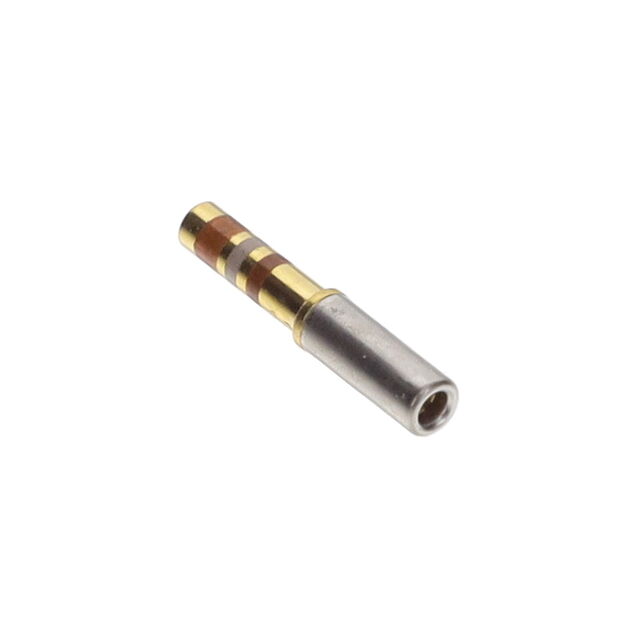

M39029/22-191
ActivePRECI-DIP SA
CONTACT SIZE 22 SOCKET, 22 AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/22-191
ActivePRECI-DIP SA
CONTACT SIZE 22 SOCKET, 22 AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/22-191 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 22 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Power, Machined |
| Wire Gauge or Range - AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.79 | |
| 1 | $ 0.73 | |||
| 10 | $ 0.67 | |||
| 10 | $ 0.62 | |||
| 25 | $ 0.59 | |||
| 50 | $ 0.58 | |||
| 100 | $ 0.60 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.40 | |||
| 1000 | $ 0.44 | |||
| 2500 | $ 0.37 | |||
| 5000 | $ 0.39 | |||
Description
General part information
M39029/22 Series
Socket Contact 22 AWG Size 22 Crimp Gold
