908-35-2-12-2-B-0

Active

Wakefield-Vette

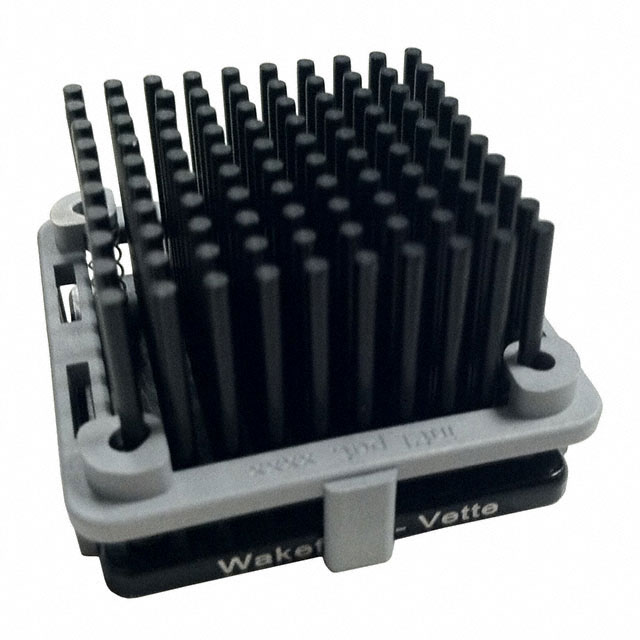

HEATSINK 35X35X12MM PIN

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK 35X35X12MM PIN

Technical Specifications

Parameters and characteristics for this part

Specification	908-35-2-12-2-B-0

Attachment Method	Push Pin
Length [x]	1.378 in
Length [x]	35 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	3.1 °C/W
Thermal Resistance @ Natural	11.1 °C/W
Type	Top Mount
Width	35 mm
Width [x]	1.378 in

Part	Type	Shape	Thermal Resistance @ Natural	Width [x]	Width	Attachment Method	Material Finish	Package Cooled	Length [x]	Length [x]	Material	Thermal Resistance @ Forced Air Flow	Fin Height	Fin Height	Fin Height [z]	Fin Height [z]
Wakefield-Vette 908-35-2-12-2-B-0	Top Mount	Pin Fins Square	11.1 °C/W	1.378 in	35 mm	Push Pin	Black Anodized	BGA	1.378 in	35 mm	Aluminum	3.1 °C/W
Wakefield-Vette 908-35-2-33-2-B-0	Top Mount	Pin Fins Square	7.65 °C/W	1.378 in	35 mm	Push Pin	Black Anodized	BGA	1.378 in	35 mm	Aluminum	1.82 °C/W 200 LFM	1.283 "	32.6 mm
Wakefield-Vette 908-35-1-12-2-B-0	Top Mount	Pin Fins Square	11.1 °C/W	1.378 in	35 mm	Push Pin	Black Anodized	BGA	1.378 in	35 mm	Aluminum	3.1 °C/W
Wakefield-Vette 908-35-2-28-2-B-0	Top Mount	Pin Fins Square	7.99 °C/W	1.378 in	35 mm	Push Pin	Black Anodized	BGA	1.378 in	35 mm	Aluminum	1.97 °C/W 200 LFM			27.6 mm	1.087 in
Wakefield-Vette 908-35-1-23-2-B-0	Top Mount	Pin Fins Square	8.8 °C/W	1.378 in	35 mm	Push Pin	Black Anodized	BGA	1.378 in	35 mm	Aluminum	2.1 °C/W 200 LFM	0.892 "	22.65 mm
Wakefield-Vette 908-35-1-18-2-B-0	Top Mount	Pin Fins Square	10.1 °C/W	1.378 in	35 mm	Push Pin	Black Anodized	BGA	1.378 in	35 mm	Aluminum	2.54 °C/W 200 LFM
Wakefield-Vette 908-35-1-33-2-B-0	Top Mount	Pin Fins Square	7.11 °C/W	1.378 in	35 mm	Push Pin	Black Anodized	BGA	1.378 in	35 mm	Aluminum	1.69 °C/W 200 LFM	1.283 "	32.6 mm
Wakefield-Vette 908-35-1-15-2-B-0	Top Mount	Pin Fins Square	10.6 °C/W	1.378 in	35 mm	Push Pin	Black Anodized	BGA	1.378 in	35 mm	Aluminum	2.79 °C/W 200 LFM			14.6 mm	0.575 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Top Mount
