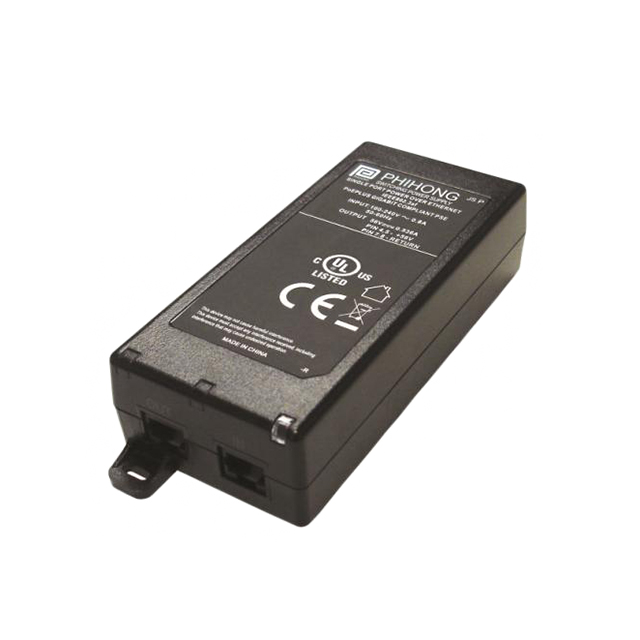

POE29U-1AF

Obsolete

Phihong USA

POE INJECTOR DESKTOP C14 GIGABIT

Search across all available documentation for this part.

Obsolete

Phihong USA

POE INJECTOR DESKTOP C14 GIGABIT

Technical Specifications

Parameters and characteristics for this part

Specification	POE29U-1AF

Approval Agency	cULus, CE
Compliance	IEEE802.3af
Current - Output	357 mA
Efficiency	80 %
Features	SCP, OCP, OVP
Input Connector	IEC 320-C14 (Power), RJ45 (Data)
Mounting Type	Desktop
Note	AC Power Cord Sold Separately
Number of Ports	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	20 W
Size / Dimension [x]	6.43 "
Size / Dimension [x]	163.3 mm
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.56 "
Size / Dimension [z]	1.42 in
Size / Dimension [z]	36.1 mm
Type	Passive Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	56 V
Weight	200.03 g
Weight	0.441 lb

Part	Weight	Weight	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Output Connector	Features	Note	Approval Agency	Current - Output	Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Connector	Power (Watts) - Per Port	Compliance	Voltage - Output	Efficiency	Data Rate
Phihong USA POE29U-1AF	200.03 g	0.441 lb	80 %	90 VAC	264 VAC	Desktop	RJ45 (Data Power)	OCP OVP SCP	AC Power Cord Sold Separately	CE cULus	357 mA	Passive Injector	50 °C	-20 C	1	1.42 in	6.43 "	65 mm	2.56 "	36.1 mm	163.3 mm	IEC 320-C14 (Power) RJ45 (Data)	20 W	IEEE802.3af	56 V
Phihong USA POE29U-560				90 VAC	264 VAC	Desktop	RJ45 (Data Power)	OCP OVP SCP		CE cULus	540 mA	Passive Injector	50 °C	-20 C	1	1.42 in	5.51 "	65 mm	2.55 "	36 mm	140 mm	IEC 320-C14	30 W	IEEE802.3af	56 V	Level VI	10 Mbps 100 Mbps 1000 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

56V Power Over Ethernet (POE) 1 Port Passive Injector Data Rate

Technical documentation and resources

No documents available
