R142676700

Active

Radiall USA, Inc.

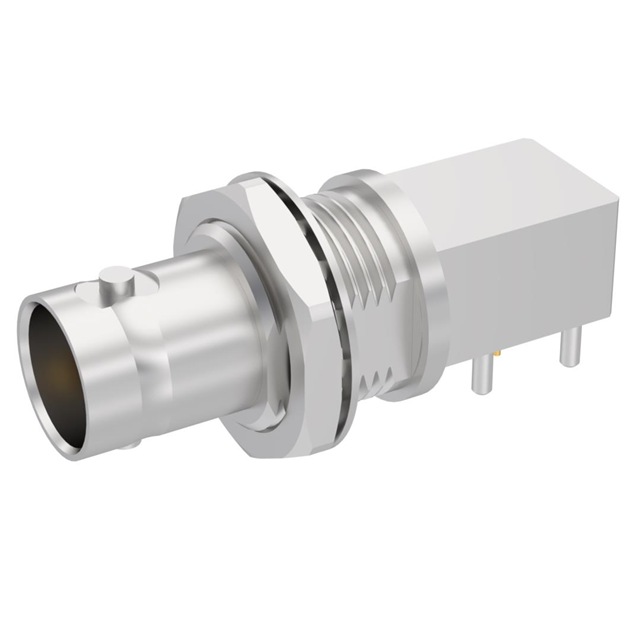

BNC 75 HDTV / RIGHT ANGLE BULKHE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC 75 HDTV / RIGHT ANGLE BULKHE

Technical Specifications

Parameters and characteristics for this part

Specification	R142676700

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	HD, BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	1000
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Style	Voltage Rating	Body Finish	Shield Termination	Mating Cycles	Contact Termination	Connector Type	Housing Color	Mounting Feature	Center Contact Plating	Body Material	Fastening Type	Mounting Type	Frequency - Max [Max]	Number of Ports	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Impedance
Radiall USA, Inc. R142676700	BNC HD	500 V	White Bronze	Solder	1000	Solder	Female Socket Jack	Silver	Bulkhead - Front Side Nut	Gold	Brass	Bayonet Lock	Panel Mount Right Angle Through Hole	6000 MHz	1	Beryllium Copper	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC, HD Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
