09120082633

Active

HARTING Technology Group

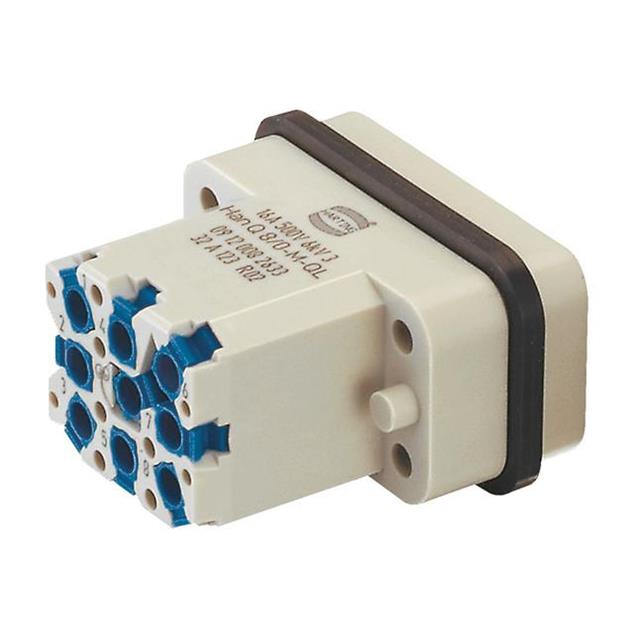

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 8+PE CONTACTS, PLUG, PUSH LOCK PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 8+PE CONTACTS, PLUG, PUSH LOCK PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09120082633

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Push In with Lock
Voltage Rating	500 V

Part	Color	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Housing Material	Contact Material	Number of Positions	Contact Finish	Voltage Rating	Gender	Material Flammability Rating
HARTING Technology Group 09120082634	Gray	16 A	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Copper Alloy	8	Silver	500 V	Male	UL94 V-0
HARTING Technology Group 09120082734	Gray	16 A	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Copper Alloy	8	Silver	500 V	Female	UL94 V-0
HARTING Technology Group 09120082733	Gray	16 A	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Copper Alloy	8	Silver	500 V	Female	UL94 V-0
HARTING Technology Group 09120082633	Gray	16 A	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Copper Alloy	8	Silver	500 V	Male	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 8 Position Push In with Lock
