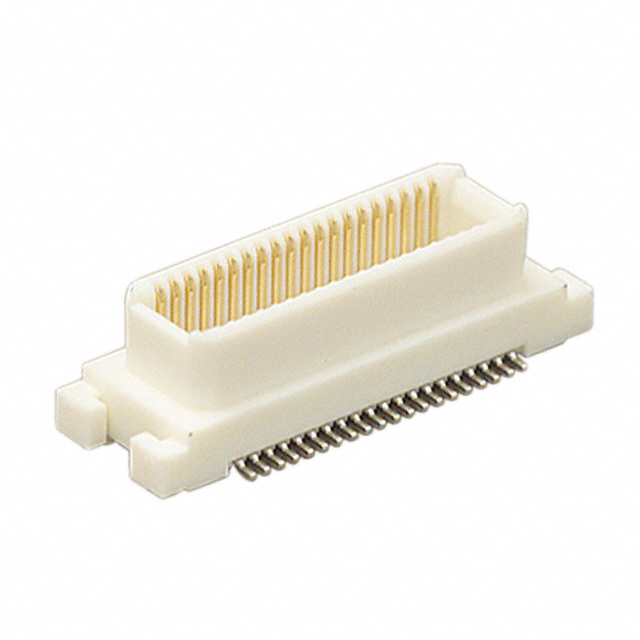

DF17A(2.0)-40DP-0.5V(51)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF17A(2.0)-40DP-0.5V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.169 in
Height Above Board	4.3 mm
Mated Stacking Heights	5 mm, 6 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Contact Finish	Height Above Board	Height Above Board	Mounting Type	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Mated Stacking Heights	Features
Hirose Electric USA, Inc. DF17A(2.0)-40DP-0.5V(51)	Gold	0.169 in	4.3 mm	Surface Mount	Header Outer Shroud Contacts	40	0.5 mm	0.02 in	2	5 mm 6 mm	Board Guide
Hirose Electric USA, Inc. DF17A(2.0)-40DP-0.5V(57)	Gold	0.169 in	4.3 mm	Surface Mount	Header Outer Shroud Contacts	40	0.5 mm	0.02 in	2	5 mm 6 mm	Board Guide
Hirose Electric USA, Inc. DF17A(2.0)-60DP-0.5V(57)	Gold	0.169 in	4.3 mm	Surface Mount	Header Outer Shroud Contacts	60	0.5 mm	0.02 in	2	5 mm 6 mm	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
