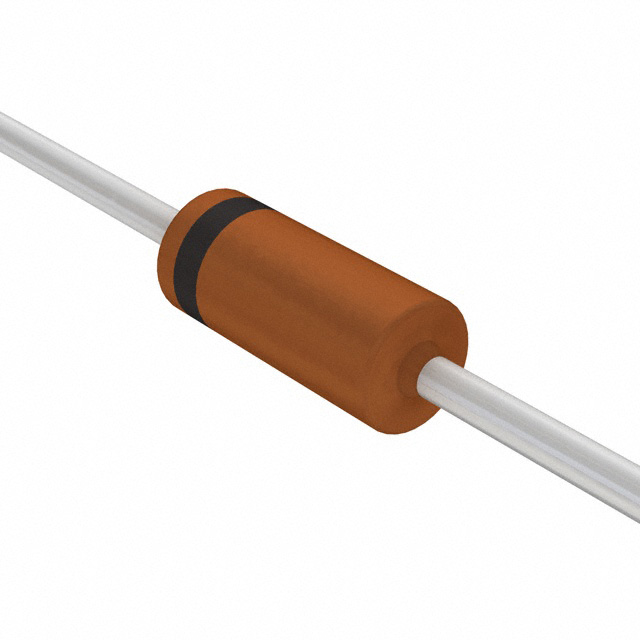

1N5245B A0G
ActiveTaiwan Semiconductor Corporation
DIODE ZENER 15V 500MW DO35
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N5245B A0G
ActiveTaiwan Semiconductor Corporation
DIODE ZENER 15V 500MW DO35
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5245B A0G |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) [Max] | 16 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature | 100 °C |
| Package / Case | Axial, DO-35, DO-204AH |
| Power - Max [Max] | 500 mW |
| Supplier Device Package | DO-35 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Zener (Nom) (Vz) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.21 | |
| 10 | $ 0.15 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.04 | |||
| 2000 | $ 0.04 | |||
| Tape & Box (TB) | 5000 | $ 0.04 | ||
| 10000 | $ 0.03 | |||
| 25000 | $ 0.03 | |||
| 50000 | $ 0.02 | |||
| 125000 | $ 0.02 | |||
Description
General part information
1N5245 Series
Zener Diode 15 V 500 mW ±5% Through Hole DO-35
