HM2R79PA5108N9LF

Active

Amphenol ICC (FCI)

HM2 RAR CNR B8 1CODING

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

HM2 RAR CNR B8 1CODING

Technical Specifications

Parameters and characteristics for this part

Specification	HM2R79PA5108N9LF

Connector Style	B 8
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

Part	Connector Type	Voltage Rating	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Style	Contact Finish
Amphenol ICC (FCI) HM2R79PA5108N9LF	Receptacle Female Sockets	750 Vrms	40	0.079 in	2 mm	Board Edge Right Angle Through Hole	All	1.5 A	Press-Fit	-55 °C	125 °C	5	B 8	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	864	$ 5.37

General part information

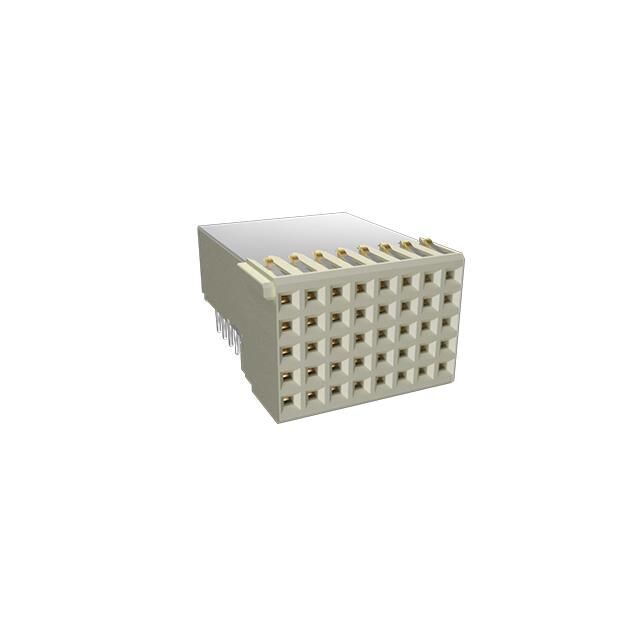

40 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
