MWA220024A-12A
ActiveInventus Power

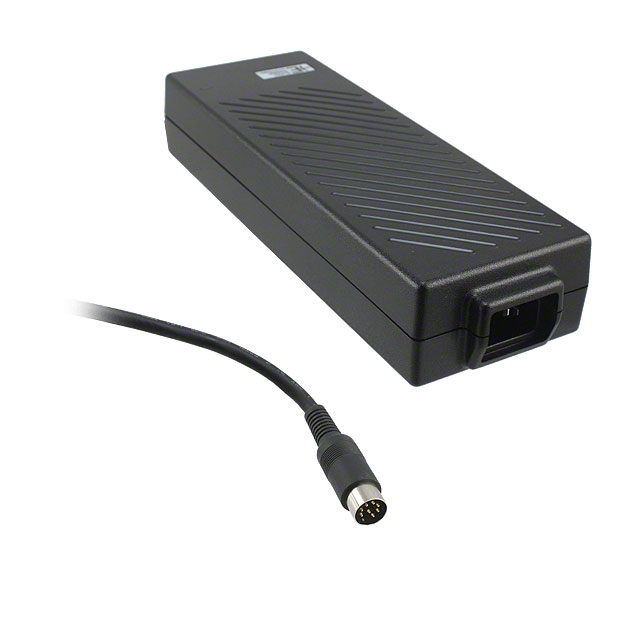

AC/DC DESKTOP ADAPTER 24V 221W
Deep-Dive with AI
Search across all available documentation for this part.
MWA220024A-12A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 24V 221W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MWA220024A-12A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cTUVus |
| Cord Length | 1.83 m |
| Cord Length | 72 in |
| Current - Output (Max) [Max] | 9.2 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 8 Pin |
| Output Connector | DIN |
| Power (Watts) | 221 W |
| Region Utilized | International |
| Size / Dimension [x] | 8.2 " |
| Size / Dimension [x] | 208 mm |
| Size / Dimension [y] | 73 mm |
| Size / Dimension [y] | 2.9 in |
| Size / Dimension [z] | 1.6 " |
| Size / Dimension [z] | 39 mm |
| Voltage - Output | 24 V |
| Weight | 952.5 g |
| Weight | 2.1 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 112.51 | |
| 5 | $ 108.88 | |||
| 10 | $ 105.25 | |||
| 30 | $ 99.81 | |||
| 50 | $ 97.99 | |||
| 100 | $ 96.54 | |||
Description
General part information
MWA220024 Series
24V 221 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Documents
Technical documentation and resources
