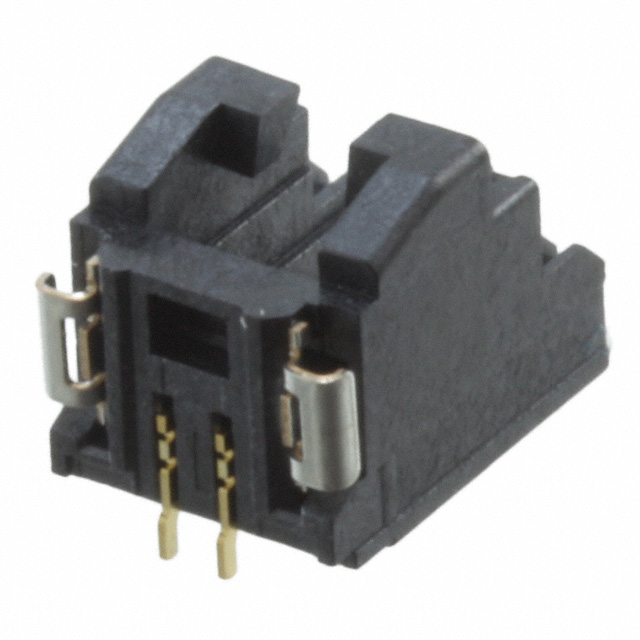

DF50A-2P-1V(51)

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 1.0MM PITCH, POSITIVE LOCK, WIRE-TO-BOARD CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF50A-xP-1V(51) Spec Datasheet

DF50A-2P-1V(51)

Active

Hirose Electric USA, Inc.

[SIGNALBEE ] 1.0MM PITCH, POSITIVE LOCK, WIRE-TO-BOARD CONNECTOR

Deep-Dive with AI

DocumentsDF50A-xP-1V(51) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF50A-2P-1V(51)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Brass
Contact Type	Male Blade
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.278 in
Insulation Height	7.06 mm
Insulation Material	Polyester
Mated Stacking Heights	7.35 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

DF50A Series

Part	Insulation Material	Insulation Height	Insulation Height	Features	Termination	Contact Material	Shrouding	Insulation Color	Fastening Type	Mated Stacking Heights	Style	Connector Type	Number of Positions Loaded	Contact Finish - Post	Number of Rows	Voltage Rating	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Color	Note	Number of Positions	Pitch [x]	Pitch [x]	Contact Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
Hirose Electric USA, Inc. DF50A-5P-1V(51)	Polyester	0.278 in	7.06 mm	Solder Retention	Solder	Brass	Shrouded - 4 Wall	Black	Push-Pull	7.35 mm	Board to Cable/Wire	Header	All	Gold	1	100 V	Surface Mount	Male Blade	-35 °C	85 °C	Gold	0.039 in	1 mm	UL94 V-0
Hirose Electric USA, Inc. DF50A-10S-1C	Polybutylene Terephthalate (PBT)								Latch Lock			Socket			1		Free Hanging (In-Line)	Female Socket	-35 °C	85 °C					Black	Contacts Not Included	10	0.039 in	1 mm	Crimp
Hirose Electric USA, Inc. DF50A-3S-1C	Polybutylene Terephthalate (PBT)								Latch Lock			Socket			1		Free Hanging (In-Line)	Female Socket	-35 °C	85 °C					Black	Contacts Not Included		0.039 in	1 mm	Crimp
Hirose Electric USA, Inc. DF50A-2P-1H(51)	Polyester	0.239 in	6.07 mm	Solder Retention	Solder	Brass	Shrouded - 4 Wall	Black	Push-Pull		Board to Cable/Wire	Header	All	Gold	1	100 V	Surface Mount Right Angle	Male Blade	-35 °C	85 °C	Gold	0.039 in	1 mm	UL94 V-0			2				2 µin	0.051 µm	2 µin	0.051 µm
Hirose Electric USA, Inc. DF50A-9S-1C	Polybutylene Terephthalate (PBT)								Latch Lock			Socket			1		Free Hanging (In-Line)	Female Socket	-35 °C	85 °C					Black	Contacts Not Included	9	0.039 in	1 mm	Crimp
Hirose Electric USA, Inc. DF50A-2P-1V(51)	Polyester	0.278 in	7.06 mm	Solder Retention	Solder	Brass	Shrouded - 4 Wall	Black	Push-Pull	7.35 mm	Board to Cable/Wire	Header	All	Gold	1	100 V	Surface Mount	Male Blade	-35 °C	85 °C	Gold	0.039 in	1 mm	UL94 V-0			2
Hirose Electric USA, Inc. DF50A-3P-1V(51)	Polyester	0.278 in	7.06 mm	Solder Retention	Solder	Brass	Shrouded - 4 Wall	Black	Push-Pull	7.35 mm	Board to Cable/Wire	Header	All	Gold	1	100 V	Surface Mount	Male Blade	-35 °C	85 °C	Gold	0.039 in	1 mm	UL94 V-0
Hirose Electric USA, Inc. DF50A-9P-1V(51)	Polyester	0.278 in	7.06 mm	Solder Retention	Solder	Brass	Shrouded - 4 Wall	Black	Push-Pull	7.35 mm	Board to Cable/Wire	Header	All	Gold	1	100 V	Surface Mount	Male Blade	-35 °C	85 °C	Gold	0.039 in	1 mm	UL94 V-0			9
Hirose Electric USA, Inc. DF50A-11P-1V(51)	Polyester	0.278 in	7.06 mm	Solder Retention	Solder	Brass	Shrouded - 4 Wall	Black	Push-Pull	7.35 mm	Board to Cable/Wire	Header	All	Gold	1	100 V	Surface Mount	Male Blade	-35 °C	85 °C	Gold	0.039 in	1 mm	UL94 V-0			11
Hirose Electric USA, Inc. DF50A-16P-1H(51)	Polyester	0.239 in	6.07 mm	Solder Retention	Solder	Brass	Shrouded - 4 Wall	Black	Push-Pull		Board to Cable/Wire	Header	All	Gold	1	100 V	Surface Mount Right Angle	Male Blade	-35 °C	85 °C	Gold	0.039 in	1 mm	UL94 V-0							2 µin	0.051 µm	2 µin	0.051 µm	16
