345-036-524-802

Active

EDAC Inc.

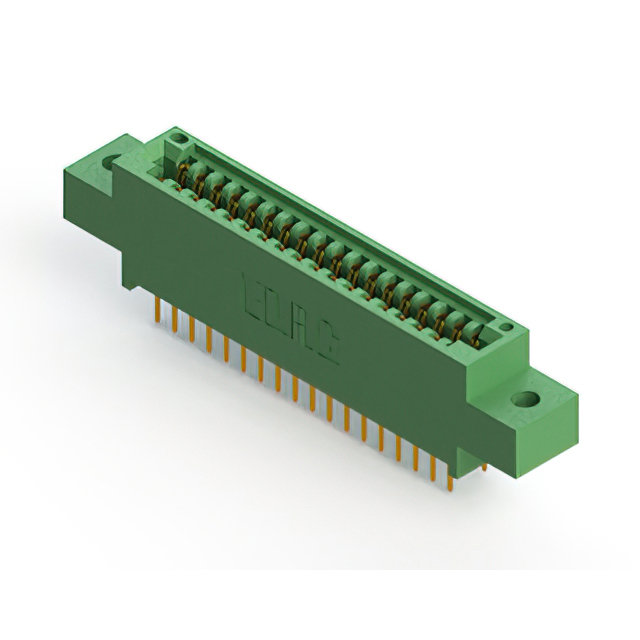

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCard Edge Brochure Interconnect Solutions Brochure +2

345-036-524-802

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 36 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsCard Edge Brochure Interconnect Solutions Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-036-524-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	36
Number of Positions/Bay/Row [custom]	18
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

345-036 Series

...

Part	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Gender	Read Out	Flange Feature	Contact Material	Color	Card Type	Features	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Positions	Contact Finish	Mounting Type	Number of Rows	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 345-036-521-278	Polyester Thermoplastic	Solder	10 Áin	0.25 Ám	Female	Dual	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Green	Non Specified - Dual Edge	Card Guides	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	2	18	36	Gold	Through Hole	2	Cantilever
EDAC Inc. 345-036-520-404	Polyester Thermoplastic	Solder	10 Áin	0.25 Ám	Female	Single	Top Mount Opening Unthreaded	Copper Alloy	Green	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	1	36	36	Gold	Through Hole	1	Cantilever	0.156 in	3.96 mm
EDAC Inc. 345-036-560-204	Polyester Thermoplastic	Solder	10 Áin	0.25 Ám	Female	Dual	Flush Mount Top Opening Unthreaded	Copper Alloy	Green	Non Specified - Dual Edge	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	2	18	36	Gold	Board Edge Straddle Mount	2	Cantilever	0.156 in	3.96 mm
EDAC Inc. 345-036-524-802	Polyester Thermoplastic	Solder	10 Áin	0.25 Ám	Female	Dual		Copper Alloy	Green	Non Specified - Dual Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	2	18	36	Gold	Through Hole	2	Cantilever			3.25 mm	0.128 in
EDAC Inc. 345-036-541-878	Polyester Thermoplastic	Wire Wrap	10 Áin	0.25 Ám	Female	Dual	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Green	Non Specified - Dual Edge	Card Guides	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	2	18	36	Gold	Through Hole	2	Cantilever
EDAC Inc. 345-036-558-108	Polyester Thermoplastic	Wire Wrap	10 Áin	0.25 Ám	Female	Single	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Green	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	1	36	36	Gold	Through Hole Right Angle	1	Cantilever
EDAC Inc. 345-036-540-104	Polyester Thermoplastic	Wire Wrap	10 Áin	0.25 Ám	Female	Single	Flush Mount Top Opening Unthreaded	Copper Alloy	Green	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	1	36	36	Gold	Through Hole	1	Cantilever	0.156 in	3.96 mm
EDAC Inc. 345-036-541-888	Polyester Thermoplastic	Wire Wrap	10 Áin	0.25 Ám	Female	Dual	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Green	Non Specified - Dual Edge	Card Guides	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	2	18	36	Gold	Through Hole	2	Cantilever
EDAC Inc. 345-036-559-207	Polyester Thermoplastic	Wire Wrap	10 Áin	0.25 Ám	Female	Dual	Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Green	Non Specified - Dual Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	2	18	36	Gold	Through Hole Right Angle	2	Cantilever
EDAC Inc. 345-036-558-403	Polyester Thermoplastic	Solder	10 Áin	0.25 Ám	Female	Single	Floating Bobbin Top Mount Opening	Copper Alloy	Green	Non Specified - Single Edge		1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in	-40 °C	105 ░C	1	36	36	Gold	Through Hole Right Angle	1	Cantilever	0.116 in	2.95 mm
