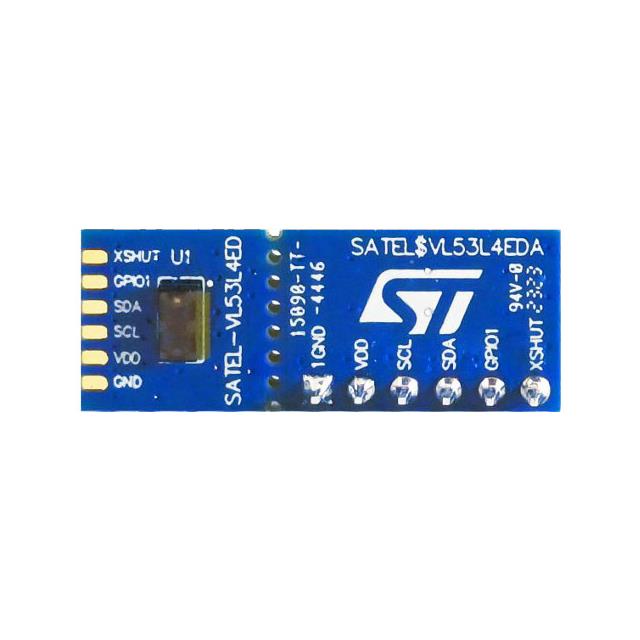

SATEL-VL53L4ED
ActiveBREAKOUT BOARD EMBEDDING THE VL53L4ED TIME-OF-FLIGHT HIGH-ACCURACY PROXIMITY SENSOR WITH EXTENDED TEMPERATURE CAPABILITY
Deep-Dive with AI
Search across all available documentation for this part.
SATEL-VL53L4ED
ActiveBREAKOUT BOARD EMBEDDING THE VL53L4ED TIME-OF-FLIGHT HIGH-ACCURACY PROXIMITY SENSOR WITH EXTENDED TEMPERATURE CAPABILITY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SATEL-VL53L4ED |
|---|---|
| Embedded | False |
| Sensing Range | 1.3 m |
| Sensor Type | Light, 3D Time-of-Flight (ToF) |
| Supplied Contents | Board(s) |
| Utilized IC / Part | VL53L4ED |
| Voltage - Supply [Max] | 3.4 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
X-NUCLEO-53L4A1 Series
The X-NUCLEO-53L4A2 is an expansion board for any STM32 Nucleo development board equipped with the Arduino R3 connectors. It provides a complete evaluation kit that allows you to learn, evaluate, and develop applications using the VL53L4CX Time-of-Flight sensor with extended range measurement.
The expansion board is delivered with a cover glass holder in which you can fit three different spacers of 0.25, 0.5, and 1 mm height below the cover glass to simulate various air gaps. A small oval cover glass fitting the sensor is included.
Several ST expansion boards can be superposed through the Arduino connectors, which allow, for example, the development of VL53L4CX applications with Bluetooth or Wi-Fi interfaces.
