SSG-5L3T

Active

Omron Electronics Inc-EMC Div

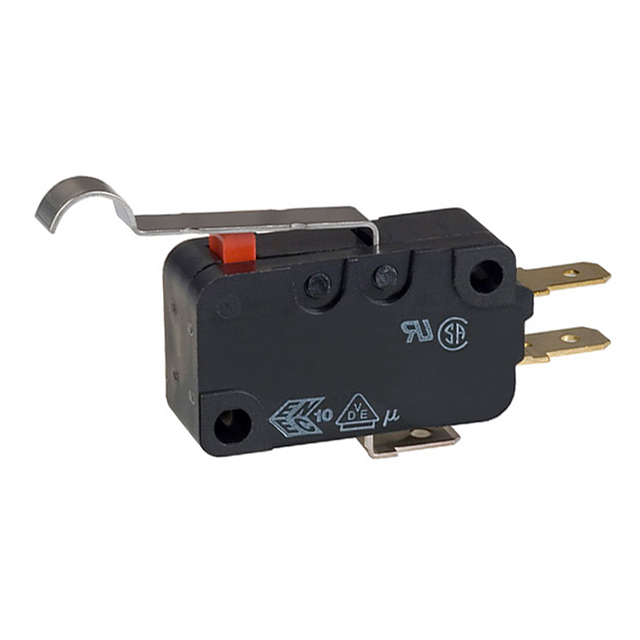

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSG-5L3T

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	5 A, 4 A
Differential Travel	0.8 mm
Differential Travel	0.031 "
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	61 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Overtravel	0.04 in
Overtravel	1 mm
Release Force	6.118 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SSG-5 Series

Part	Ingress Protection	Overtravel	Overtravel	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Switch Function	Mounting Type	Operating Position	Operating Position	Termination Style	Voltage Rating - AC	Operating Force	Pretravel	Pretravel	Release Force	Electrical Life	Mechanical Life	Voltage Rating - DC	Actuator Type	Operating Position [custom]	Operating Position [custom]
Omron Electronics Inc-EMC Div SSG-5T	IP40	0.4 mm	0.015 "	0.1 mm	0.004 in	125 °C	-25 °C	SPDT	4 A 5 A	On-Mom	Chassis Mount	8.4 mm	0.33 in	Quick Connect - 0.110" (2.8mm)	125 V	153 gf	0.024 in	0.6 mm	25 gf	200000 Cycles	10000000 Cycles	30 V	Round (Pin Plunger)
Omron Electronics Inc-EMC Div SSG-5L1P-5	IP40	1 mm	0.039 in	0.8 mm	0.031 "	125 °C	-25 °C	SPDT	5 A	On-Mom	Chassis Mount	12.2 mm	0.48 in	Solder Lug	125 V	20 gf			2 gf	200000 Cycles	10000000 Cycles		Lever Straight
Omron Electronics Inc-EMC Div SSG-5L2P	IP40	1 mm	0.04 in	0.8 mm	0.031 "	125 °C	-25 °C	SPDT	4 A 5 A	On-Mom	Through Hole			PC Pin	125 V	61 gf			6.118 gf	200000 Cycles	10000000 Cycles	30 V	Lever Roller
Omron Electronics Inc-EMC Div SSG-5L3H	IP40	1 mm	0.04 in	0.8 mm	0.031 "	125 °C	-25 °C	SPDT	4 A 5 A	On-Mom	Chassis Mount			Solder Lug	125 V	61 gf			6.118 gf	200000 Cycles	10000000 Cycles	30 V	Lever Simulated Roller
Omron Electronics Inc-EMC Div SSG-5L3T	IP40	1 mm	0.04 in	0.8 mm	0.031 "	125 °C	-25 °C	SPDT	4 A 5 A	On-Mom	Chassis Mount			Quick Connect - 0.110" (2.8mm)	125 V	61 gf			6.118 gf	200000 Cycles	10000000 Cycles	30 V	Lever Simulated Roller
Omron Electronics Inc-EMC Div SSG-5L3-3H	IP40	1 mm	0.04 in	0.8 mm	0.031 "	125 °C	-25 °C	SPST-NO	4 A 5 A	Off-Mom	Chassis Mount			Solder Lug	125 V	61 gf			6.118 gf	200000 Cycles	10000000 Cycles	30 V	Lever Simulated Roller
Omron Electronics Inc-EMC Div SSG-5L2H	IP40	1 mm	0.04 in	0.8 mm	0.031 "	125 °C	-25 °C	SPDT	4 A 5 A	On-Mom	Chassis Mount			Solder Lug	125 V	61 gf			6.118 gf	200000 Cycles	10000000 Cycles	30 V	Lever Roller	0.571 in	14.5 mm
Omron Electronics Inc-EMC Div SSG-5L2T	IP40	1 mm	0.04 in	0.8 mm	0.031 "	125 °C	-25 °C	SPDT	4 A 5 A	On-Mom	Chassis Mount			Quick Connect - 0.110" (2.8mm)	125 V	61 gf			6.118 gf	200000 Cycles	10000000 Cycles	30 V	Lever Roller	0.571 in	14.5 mm
Omron Electronics Inc-EMC Div SSG-5L3P	IP40	1 mm	0.039 in	0.8 mm	0.031 "	125 °C	-25 °C	SPDT	5 A	On-Mom	Chassis Mount	14.4 mm	0.567 in	Solder Lug	125 V	61 gf			6 gf				Lever Simulated Roller
Omron Electronics Inc-EMC Div SSG-5L1H-5	IP40	1 mm	0.04 in	0.8 mm	0.031 "	125 °C	-25 °C	SPDT	4 A 5 A	On-Mom	Chassis Mount	8.8 mm	0.345 in	Solder Lug	125 V	20 gf			2.039 gf	200000 Cycles	10000000 Cycles	30 V	Lever Straight
