SDF-V37-113L011

Active

MH Connectors

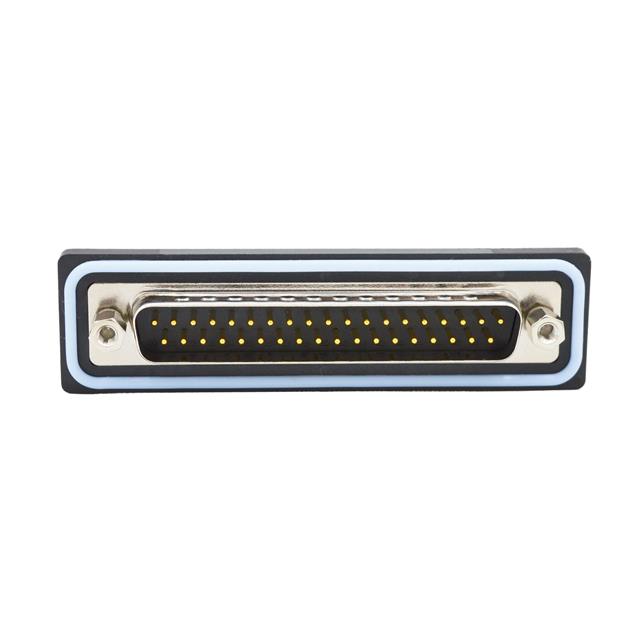

CONN D-SUB PLUG 37P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDF-V37-113L011

Active

MH Connectors

CONN D-SUB PLUG 37P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDF-V37-113L011

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

SDF-V37 Series

Part	Contact Finish Thickness	Contact Finish	Connector Type	Connector Style	Flange Feature	Termination	Mounting Type	Number of Positions	Color	Shell Size, Connector Layout	Current Rating (Amps)	Shell Material, Finish	Contact Type	Dielectric Material	Features	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Ingress Protection	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness
MH Connectors SDF-V37-113L051	Flash	Gold	Male Pins Plug	D-Sub	Female Screwlock (4-40) Mating Side	Solder	Panel Mount Through Hole	37	Black	4 (DC C)	5 A	Nickel Plated Steel	Signal	Polybutylene Terephthalate (PBT)	Board Lock Grounding Indents	Brass	-25 °C	85 °C	2	IP67 - Dust Tight Waterproof	UL94 V-0
MH Connectors SDF-V37-213L051	Flash	Gold	Receptacle Female Sockets	D-Sub	Female Screwlock (4-40) Mating Side	Solder	Panel Mount Through Hole	37	Black	4 (DC C)	5 A	Nickel Plated Steel	Signal	Polybutylene Terephthalate (PBT)		Brass	-25 °C	85 °C	2	IP67 - Dust Tight Waterproof	UL94 V-0
MH Connectors SDF-V37-113L052		Gold	Male Pins Plug	D-Sub	Female Screwlock (4-40) Mating Side	Solder	Panel Mount Through Hole	37	Black	4 (DC C)	5 A	Nickel Plated Steel	Signal	Polybutylene Terephthalate (PBT)	Board Lock Grounding Indents	Brass	-25 °C	85 °C	2	IP67 - Dust Tight Waterproof	UL94 V-0	0.76 Ám	30 Áin
MH Connectors SDF-V37-113L011	Flash	Gold	Male Pins Plug	D-Sub	Female Screwlock (4-40) Mating Side	Solder	Panel Mount Through Hole	37	Black	4 (DC C)	5 A	Nickel Plated Steel	Signal	Polybutylene Terephthalate (PBT)	Grounding Indents	Brass	-25 °C	85 °C	2	IP67 - Dust Tight Waterproof	UL94 V-0
MH Connectors SDF-V37-113L012		Gold	Male Pins Plug	D-Sub	Female Screwlock (4-40) Mating Side	Solder	Panel Mount Through Hole	37	Black	4 (DC C)	5 A	Nickel Plated Steel	Signal	Polybutylene Terephthalate (PBT)	Grounding Indents	Brass	-25 °C	85 °C	2	IP67 - Dust Tight Waterproof	UL94 V-0	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 11.75
		10	$ 9.04
		25	$ 8.17
		40	$ 7.93

Description

General part information

SDF-V37 Series

37 Position D-Sub Plug, Male Pins Connector
