KH-102-3C-DC24V

Active

KOINO

RELAY GEN PURPOSE 3PDT 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KH-102-3C-DC24V

Active

KOINO

RELAY GEN PURPOSE 3PDT 10A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KH-102-3C-DC24V

Coil Current	60 mA
Coil Resistance	400 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	3PDT (3 Form C)
Contact Material	Polybutylene Succinate (PBS), Phosphor Bronze
Contact Rating (Current)	10 A
Load - Max Switching	240 W
Mounting Type	Socketable
Must Operate Voltage	19.2 VDC
Must Release Voltage	3.6 VDC
Operate Time	25 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-5 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	24 VDC, 220 VAC
Termination Style	Plug In, 11 Pin (Octal)

KH-102 Series

Part	Release Time	Contact Rating (Current)	Coil Type	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Coil Current	Coil Resistance	Switching Voltage	Features	Termination Style	Mounting Type	Load - Max Switching	Contact Form	Must Operate Voltage	Must Release Voltage	Contact Material	Relay Type	Load - Max Switching [Max]
KOINO KH-102-2CL-DC24V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	24 VDC	60 mA	400 Ohms	24 VDC 220 VAC	Lighted Indicator	Plug In 8 Pin (Octal)	Socketable	240 W	DPDT (2 Form C)	19.2 VDC	3.6 VDC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose
KOINO KH-102-3CL-AC220V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	220 VAC/DC	11.5 mA	6.8 kOhms	24 VDC 220 VAC	Lighted Indicator	Plug In 11 Pin (Octal)	Socketable		3PDT (3 Form C)	176 VAC	66 VAC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose	1650 VA
KOINO KH-102-2C-AC220V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	220 VAC/DC	11.5 mA	6.8 kOhms	24 VDC 220 VAC		Plug In 8 Pin (Octal)	Socketable		DPDT (2 Form C)	176 VAC	66 VAC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose	1650 VA
KOINO KH-102-2CL-DC12V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	12 VDC	120 mA	100 Ohms	24 VDC 220 VAC	Lighted Indicator	Plug In 8 Pin (Octal)	Socketable	240 W	DPDT (2 Form C)	9.6 VDC	1.8 VDC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose
KOINO KH-102-2CL-AC220V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	220 VAC/DC	11.5 mA	6.8 kOhms	24 VDC 220 VAC	Lighted Indicator	Plug In 8 Pin (Octal)	Socketable		DPDT (2 Form C)	176 VAC	66 VAC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose	1650 VA
KOINO KH-102-3CL-DC12V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	12 VDC	120 mA	100 Ohms	24 VDC 220 VAC	Lighted Indicator	Plug In 11 Pin (Octal)	Socketable	240 W	3PDT (3 Form C)	9.6 VDC	1.8 VDC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose
KOINO KH-102-3C-DC24V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	24 VDC	60 mA	400 Ohms	24 VDC 220 VAC		Plug In 11 Pin (Octal)	Socketable	240 W	3PDT (3 Form C)	19.2 VDC	3.6 VDC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose
KOINO KH-102-2C-AC110V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	110 VAC/DC	23 mA	1.64 kOhms	24 VDC 220 VAC		Plug In 8 Pin (Octal)	Socketable		DPDT (2 Form C)	88 VAC/DC	33 VAC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose	1650 VA
KOINO KH-102-3C-AC220V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	220 VAC/DC	11.5 mA	6.8 kOhms	24 VDC 220 VAC		Plug In 11 Pin (Octal)	Socketable		3PDT (3 Form C)	176 VAC	66 VAC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose	1650 VA
KOINO KH-102-2CL-AC110V	25 ms	10 A	Non Latching	25 ms	-5 °C	40 °C	110 VAC/DC	23 mA	1.64 kOhms	24 VDC 220 VAC	Lighted Indicator	Plug In 8 Pin (Octal)	Socketable		DPDT (2 Form C)	88 VAC/DC	33 VAC	Phosphor Bronze Polybutylene Succinate (PBS)	General Purpose	1650 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 15.65
		20	$ 12.95
		40	$ 11.54
		50	$ 11.26
		100	$ 10.64

Description

General part information

KH-102 Series

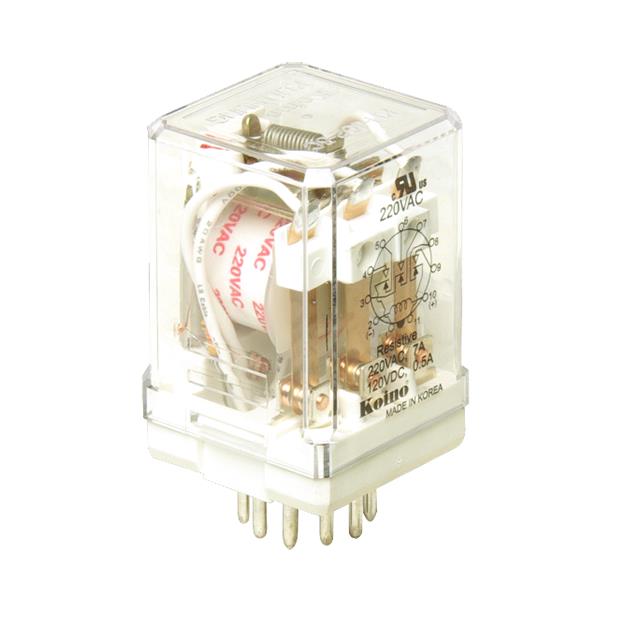

General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
