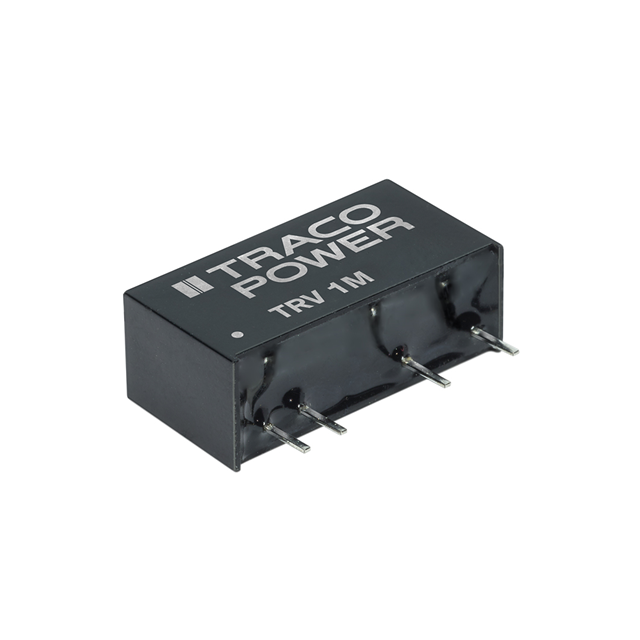

TRV 1-2411M

Active

Traco Power

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRV 1-2411M

Active

Traco Power

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRV 1-2411M

Applications	ITE (Commercial), Medical
Approval Agency	CB, cURus
Current - Output (Max) [Max]	200 mA
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-SIP Module, 4 Leads
Size / Dimension [x]	19.6 mm
Size / Dimension [x]	0.77 in
Size / Dimension [y]	9.9 mm
Size / Dimension [y]	0.39 "
Size / Dimension [z]	12.5 mm
Size / Dimension [z]	0.49 in
Type	Isolated Module
Voltage - Input (Max) [Max]	28.8 V
Voltage - Input (Min) [Min]	19.2 V
Voltage - Isolation	5000 V
Voltage - Output 1	5 V

TRV 1 Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Power (Watts)	Package / Case	Efficiency	Voltage - Input (Min) [Min]	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Mounting Type	Voltage - Output 1	Type	Current - Output (Max) [Max]	Voltage - Output 2	Package / Case	Current - Output (Max)	Current - Output (Max)
Traco Power TRV 1-0512M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus	996 mW	4 Leads 9-SIP Module	85 %	4.5 V	ITE (Commercial) Medical	5.5 V	5000 V	1	85 °C	-40 °C	83 mA	Through Hole	12 V	Isolated Module
Traco Power TRV 1-1511M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus		4 Leads 9-SIP Module	83 %		ITE (Commercial) Medical	18 V	5000 V	1	85 °C	-40 °C	200 mA	Through Hole	5 V	Isolated Module
Traco Power TRV 1-1212M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus	996 mW	4 Leads 9-SIP Module	84 %	9.6 V	ITE (Commercial) Medical	14.4 V	5000 V	1	85 °C	-40 °C	83 mA	Through Hole	12 V	Isolated Module
Traco Power TRV 1-0522M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus		9-SIP Module	85 %	4.5 V	ITE (Commercial) Medical	5.5 V	5000 V	2	85 °C	-40 °C	42 mA	Through Hole	12 V	Isolated Module	42 mA	-12 V	5 Leads
Traco Power TRV 1-0521M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus		9-SIP Module	85 %	4.5 V	ITE (Commercial) Medical	5.5 V	5000 V	2	85 °C	-40 °C		Through Hole	5 V	Isolated Module		-5 V	5 Leads	100 mA	100 mA
Traco Power TRV 1-0510M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus		4 Leads 9-SIP Module	80 %	4.5 V	ITE (Commercial) Medical	5.5 V	5000 V	1	85 °C	-40 °C	303 mA	Through Hole	3.3 V	Isolated Module
Traco Power TRV 1-1523M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus		9-SIP Module	83 %		ITE (Commercial) Medical	18 V	5000 V	2	85 °C	-40 °C		Through Hole	15 V	Isolated Module		-15 V	5 Leads		34 mA
Traco Power TRV 1-0511M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus		4 Leads 9-SIP Module		4.5 V	ITE (Commercial) Medical	5.5 V	5000 V	1	85 °C	-40 °C	200 mA	Through Hole	5 V	Isolated Module
Traco Power TRV 1-2423M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus		9-SIP Module	81 %	19.2 V	ITE (Commercial) Medical	28.8 V	5000 V	2	85 °C	-40 °C		Through Hole	15 V	Isolated Module		-15 V	5 Leads		34 mA
Traco Power TRV 1-2411M	9.9 mm	0.39 "	12.5 mm	19.6 mm	0.77 in	0.49 in	CB cURus		4 Leads 9-SIP Module		19.2 V	ITE (Commercial) Medical	28.8 V	5000 V	1	85 °C	-40 °C	200 mA	Through Hole	5 V	Isolated Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.30
		10	$ 14.06
		25	$ 13.59
		50	$ 13.25
		100	$ 12.92
		250	$ 12.49
		500	$ 12.18

Description

General part information

TRV 1 Series

Isolated Module DC DC Converter 1 Output 5V 200mA 19.2V - 28.8V Input
