PLB4G820004

Active

ITT Cannon, LLC

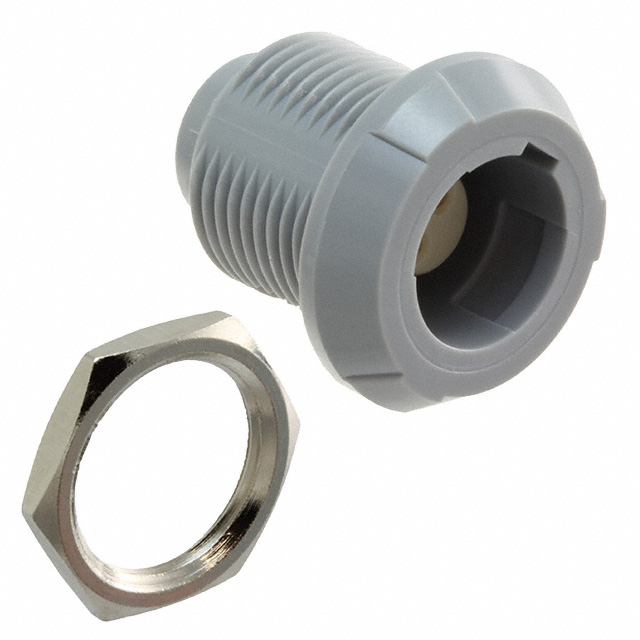

CONN RCPT FMALE 4POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PLB4G820004

Active

ITT Cannon, LLC

CONN RCPT FMALE 4POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PLB4G820004

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Material	Copper Alloy
Current Rating (Amps)	8 A
Fastening Type	Push-Pull, Latch Lock
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	0 °
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shielding	Unshielded

PLB4G Series

...

Part	Contact Finish - Mating	Mounting Feature	Number of Positions	Insert Material	Color	Contact Material	Ingress Protection	Orientation	Applications	Shell Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Primary Material	Shielding	Fastening Type	Orientation
ITT Cannon, LLC PLB4G620E06	Gold	Bulkhead - Front or Rear Side Nut	6	Polyetheretherketone (PEEK)	Blue Gray	Copper Alloy	IP50	E	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	6 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull
ITT Cannon, LLC PLB4G820014	Gold	Bulkhead - Front or Rear Side Nut	14	Polyetheretherketone (PEEK)	Gray	Copper Alloy	IP50		Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	2 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull	0 °
ITT Cannon, LLC PLB4G420E14	Gold	Bulkhead - Front or Rear Side Nut	14	Polyetheretherketone (PEEK)	Gray Yellow	Copper Alloy	IP50	E	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	2 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull
ITT Cannon, LLC PLB4G220007	Gold	Bulkhead - Front or Rear Side Nut	7	Polyetheretherketone (PEEK)	Gray Red	Copper Alloy	IP50		Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	5 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull	0 °
ITT Cannon, LLC PLB4G120C08	Gold	Bulkhead - Front or Rear Side Nut	8	Polyetheretherketone (PEEK)	Gray White	Copper Alloy	IP50	C	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	5 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull
ITT Cannon, LLC PLB4G820004	Gold	Bulkhead - Front or Rear Side Nut	4	Polyetheretherketone (PEEK)	Gray	Copper Alloy	IP50		Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	8 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull	0 °
ITT Cannon, LLC PLB4G420J09	Gold	Bulkhead - Front or Rear Side Nut	9	Polyetheretherketone (PEEK)	Gray Yellow	Copper Alloy	IP50	J	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	3 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull
ITT Cannon, LLC PLB4G420H10	Gold	Bulkhead - Front or Rear Side Nut	10	Polyetheretherketone (PEEK)	Gray Yellow	Copper Alloy	IP50	H	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	3 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull
ITT Cannon, LLC PLB4G020C03	Gold	Bulkhead - Front or Rear Side Nut		Polyetheretherketone (PEEK)		Copper Alloy	IP50	C	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	10 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull
ITT Cannon, LLC PLB4G420A02	Gold	Bulkhead - Front or Rear Side Nut	2	Polyetheretherketone (PEEK)	Gray Yellow	Copper Alloy	IP50	A	Industrial Measurement Medical Testing Equipment	Polysulfone (PSU)	10 A	0.51 µm	20 µin	150 °C	-50 °C	Receptacle Female Sockets	Plastic	Unshielded	Latch Lock Push-Pull

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.89
		10	$ 17.64
		25	$ 15.97
		50	$ 14.84
		100	$ 13.81
		250	$ 12.61
		500	$ 11.80

Description

General part information

PLB4G Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
