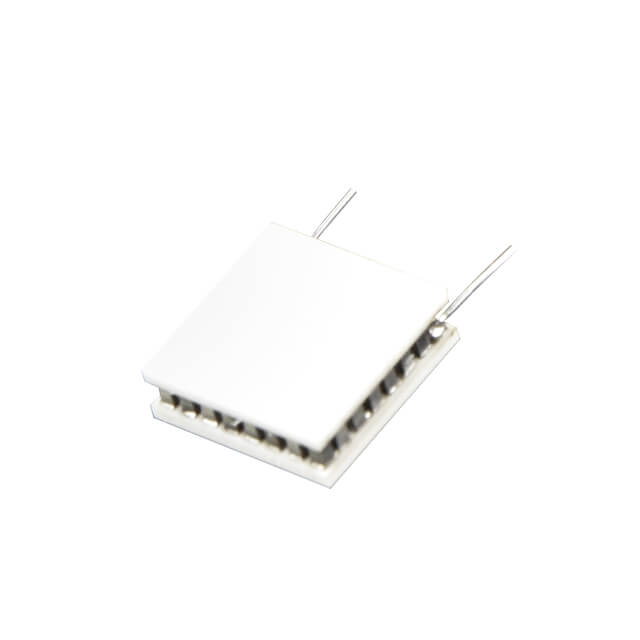

CP1881-222
ActiveCUI Devices
THERMOELECTRIC MODULE 3.6A 16.7V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP1881-222
ActiveCUI Devices
THERMOELECTRIC MODULE 3.6A 16.7V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP1881-222 |
|---|---|
| Current - Max [Max] | 1.8 A |
| Delta Tmax @ Th | 70 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.22 mm |
| Operating Temperature | 150 °C |
| Qmax @ Th | 3.8 W |
| Size / Dimension | Square |
| Size / Dimension [x] | 8.1 mm |
| Size / Dimension [y] | 8.1 mm |
| Voltage - Max [Max] | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 29.32 | |
| 5 | $ 27.66 | |||
| 10 | $ 26.83 | |||
| 25 | $ 26.01 | |||
| 60 | $ 25.34 | |||
| 120 | $ 24.68 | |||
Description
General part information
CP1881 Series
Peltier Module 3.8W @ 27°C 1.8 A 150°C
