SB-4102
ActiveAearo Technologies LLC, a 3M company

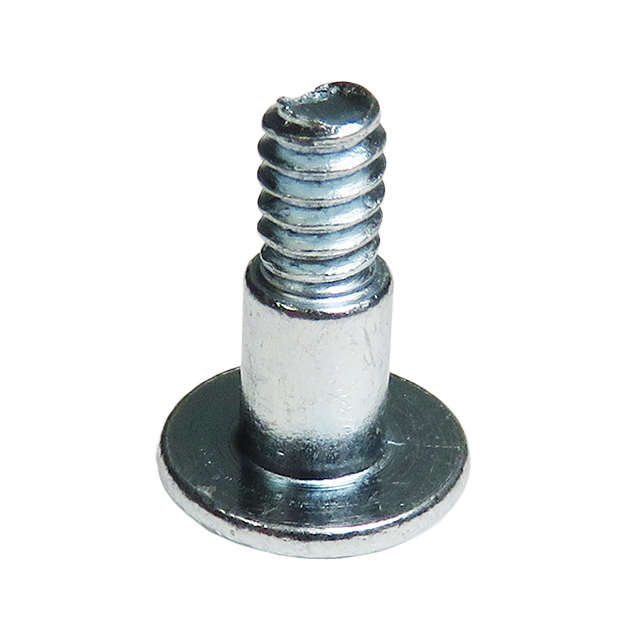

SHOULDER SCREW PHILLIPS #6-32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SB-4102 |
|---|---|
| Drive Type | Phillips |
| Head Diameter [diameter] | 8.89 mm |
| Head Diameter [diameter] | 0.35 in |
| Head Height | 0.1 in |
| Head Height | 2.54 mm |
| Length - Below Head | 0.4 in |
| Length - Below Head | 10.16 mm |
| Length - Overall | 0.5 in |
| Length - Overall | 0.5 in |
| Length - Overall | 12.7 mm |
| Plating | Zinc |
| Thread Size | #6-32 |
| Type | Shoulder Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.75 | |
| 10 | $ 0.59 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.49 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.42 | |||
Description
General part information
SB-410 Series
#6-32 Shoulder Screw Phillips Drive Steel
