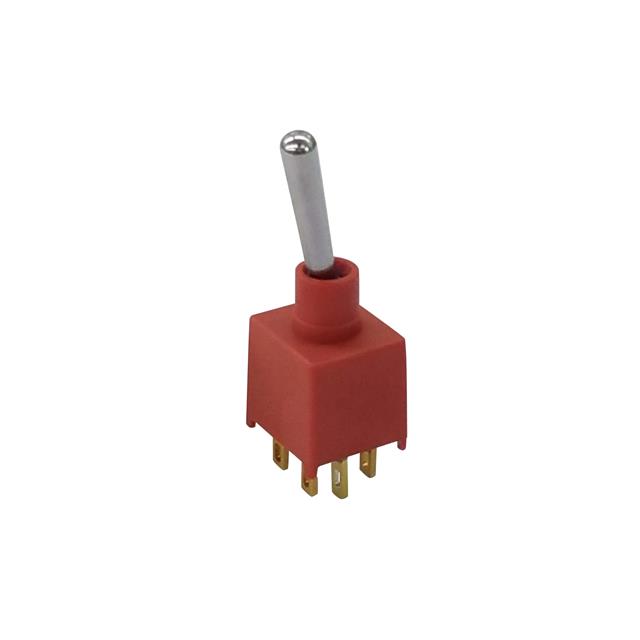

SW-T3-4B-A-T3-S-05
ActiveAdam Tech
SWITCH TOGGLE DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SW-T3-4B-A-T3-S-05
ActiveAdam Tech
SWITCH TOGGLE DPDT 3A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-T3-4B-A-T3-S-05 |
|---|---|
| Actuator Length [x] | 10.7 mm |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | DPDT |
| Current Rating (Amps) | 3 A |
| Electrical Life | 30000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.05 | |
| 10 | $ 3.49 | |||
| 25 | $ 3.30 | |||
| 50 | $ 3.15 | |||
| 200 | $ 2.88 | |||
| 400 | $ 2.76 | |||
| 600 | $ 2.69 | |||
| 1000 | $ 2.60 | |||
Description
General part information
SW-T3 Series
Toggle Switch DPDT Panel Mount
