24_N-75-4-2/133_NE

Active

Huber+Suhner, Inc.

24_N-75-4-2/133_NE

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

24_N-75-4-2/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	24_N-75-4-2/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-59
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1000 VDC

Part	Housing Color	Connector Style	Voltage Rating	Connector Type	Mounting Feature	Impedance	Contact Termination	Number of Ports	Frequency - Max [Max]	Body Finish	Mating Cycles	Center Contact Plating	Cable Group	Shield Termination	Center Contact Material	Body Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]
Huber+Suhner, Inc. 24_N-75-4-2/133_NE	Silver	N Type	1000 VDC	Female Socket Jack	Bulkhead - Front Side Nut	75 Ohms	Solder	1	1.5 GHz	White Bronze	500	Gold	RG-59	Clamp	Beryllium Copper	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

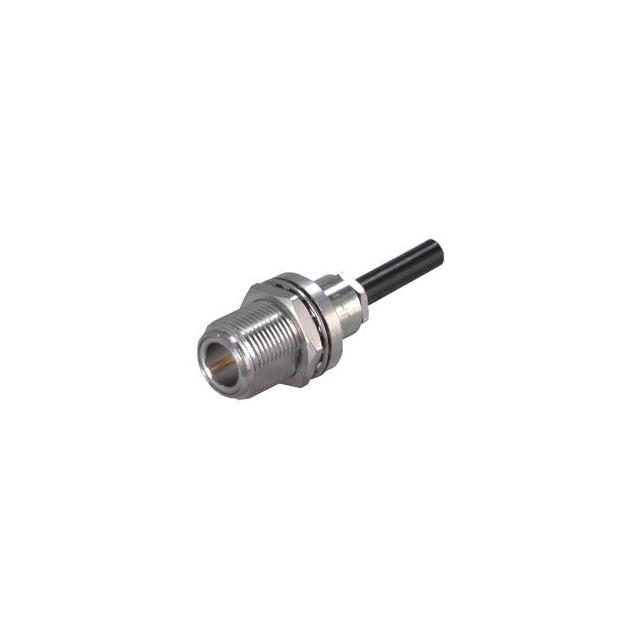

N Type Connector Jack, Female Socket 75 Ohms Panel Mount Solder
