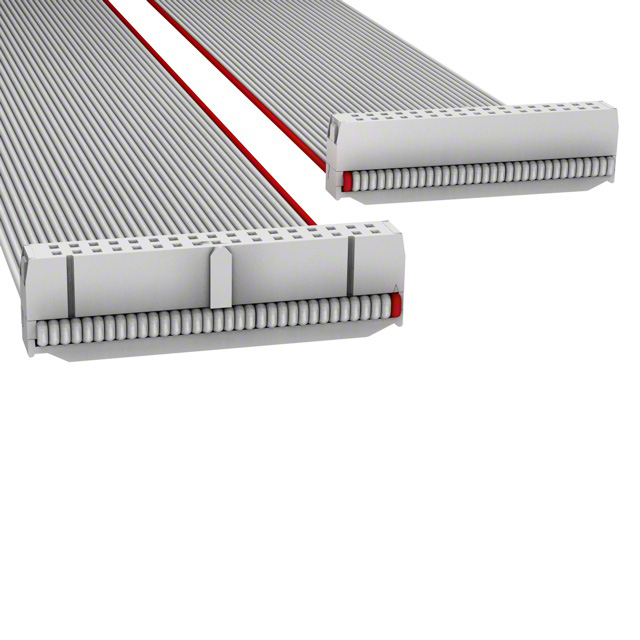

H3DDH-3406G

Active

Assmann WSW Components

IDC CBL - HHKR34H/AE34G/HHKR34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR34H/AE34G/HHKR34H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDH-3406G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Cable Termination	Color	Number of Rows	Length	Length	Length	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Connector	Pitch - Connector	Shielding	Number of Positions	Pitch - Cable	Pitch - Cable	Features	Length [x]	Length [x]
Assmann WSW Components H3DDH-3406M	IDC	Multiple Ribbon	2	152.4 mm	6 "	0.5 '	Socket to Socket	15 µin	0.38 µm	Gold	0.1 in	2.54 mm	Unshielded	34	0.05 "	1.27 mm	Polarizing Key Strain Relief
Assmann WSW Components H3DDH-3418M	IDC	Multiple Ribbon	2				Socket to Socket	15 µin	0.38 µm	Gold	0.1 in	2.54 mm	Unshielded	34	0.05 "	1.27 mm	Polarizing Key Strain Relief	457.2 mm	1.5 ft
Assmann WSW Components H3DDH-3406G	IDC		2	152.4 mm	6 "	0.5 '	Socket to Socket	15 µin	0.38 µm	Gold	0.1 in	2.54 mm	Unshielded	34	0.05 "	1.27 mm	Polarizing Key Strain Relief
Assmann WSW Components H3DDH-3436G	IDC		2				Socket to Socket	15 µin	0.38 µm	Gold	0.1 in	2.54 mm	Unshielded	34	0.05 "	1.27 mm	Polarizing Key Strain Relief	914.4 mm	3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
