Q8P1BXXW110E

Active

APEM

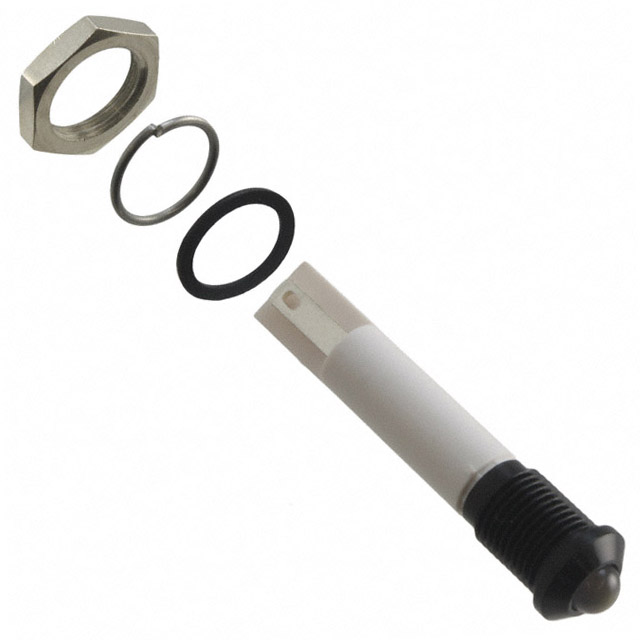

INDICATOR 110V 8MM PROMINENT WHT

Search across all available documentation for this part.

Active

APEM

INDICATOR 110V 8MM PROMINENT WHT

Technical Specifications

Parameters and characteristics for this part

Specification	Q8P1BXXW110E

Current	6 mA
Ingress Protection	IP67
Lamp Color	White
Lens Color	White
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	1600 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Ratings	AC
Termination Style	Solder Lug
Type	LED
Viewing Angle	100 °
Voltage	110 V

Part	Lens Style	Lens Transparency	Type	Lamp Color	Lens Size	Lens Size	Viewing Angle	Ratings	Ingress Protection	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Termination Style	Lens Color	Current	Panel Cutout Shape	Millicandela Rating	Voltage
APEM Q8P1BXXW110E	Round with Domed Top	Diffused	LED	White	T-1 3/4	5 mm	100 °	AC	IP67	0.31 in	7.87 mm	Solder Lug	White	6 mA	Round	1600 mcd	110 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.99

General part information

LED Panel Indicator White Diffused 100° 110V 6mA Solder Lug
