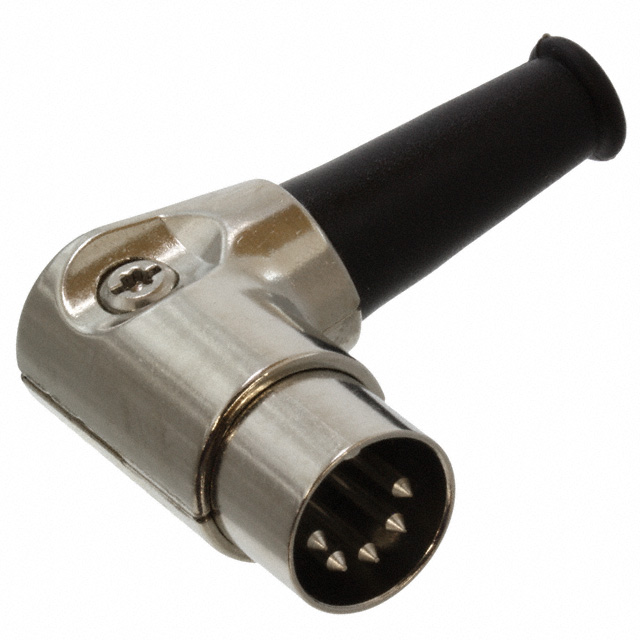

05DL5MX

Active

Switchcraft Inc.

CONN PLUG MALE DIN 5POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE DIN 5POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	05DL5MX

Color	Silver
Connector Type	Plug, Male Pins
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line), Right Angle
Orientation	5
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN
Termination	Solder
Voltage Rating	34 V

Part	Connector Type	Primary Material	Shell Material	Shell Size - Insert	Shell Finish	Orientation	Voltage Rating	Fastening Type	Current Rating (Amps)	Termination	Mounting Type	Color	Features	Insert Material
Switchcraft Inc. 05DL5MX	Male Pins Plug	Metal	Zinc Die Cast	DIN	Nickel	5	34 V	Push-Pull	3 A	Solder	Free Hanging (In-Line) Right Angle	Silver	Backshell Strain Relief	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Solder
