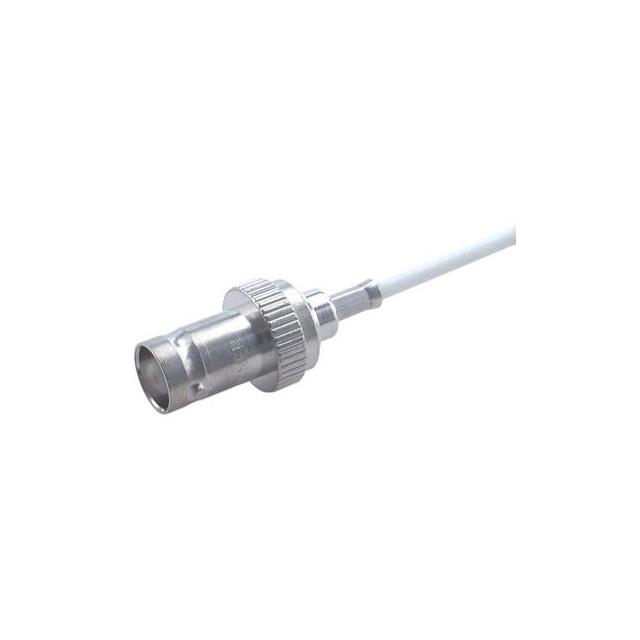

21_BNC-75-2-5/133_NE

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

21_BNC-75-2-5/133_NE

Technical Specifications

Parameters and characteristics for this part

Specification	21_BNC-75-2-5/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	187, RG-179
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Finish	Center Contact Material	Cable Group	Body Material	Fastening Type	Dielectric Material	Impedance	Frequency - Max [Max]	Connector Type	Mating Cycles	Voltage Rating	Center Contact Plating	Number of Ports	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Contact Termination	Housing Color	Mounting Type
Huber+Suhner, Inc. 21_BNC-75-2-5/133_NE	White Bronze	Beryllium Copper Brass	187 RG-179	Brass	Bayonet Lock	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	75 Ohms	1 GHz	Female Socket Jack	500	500 V	Gold	1	BNC	-65 ░C	165 °C	Crimp	Crimp	Silver	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 25.06

General part information

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
