2STF1525

Obsolete

STMicroelectronics

TRANS NPN 25V 5A SOT89

Search across all available documentation for this part.

Obsolete

STMicroelectronics

TRANS NPN 25V 5A SOT89

Technical Specifications

Parameters and characteristics for this part

Specification	2STF1525

Current - Collector (Ic) (Max)	5 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	150
Frequency - Transition	120 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	1.4 W
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	25 V

Part	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Frequency - Transition	Transistor Type	Mounting Type	Package / Case	Current - Collector (Ic) (Max)	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Power - Max [Max]
STMicroelectronics 2STF1525	150 °C	150	500 mV	120 MHz	NPN	Surface Mount	TO-243AA	5 A	100 nA	25 V	1.4 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

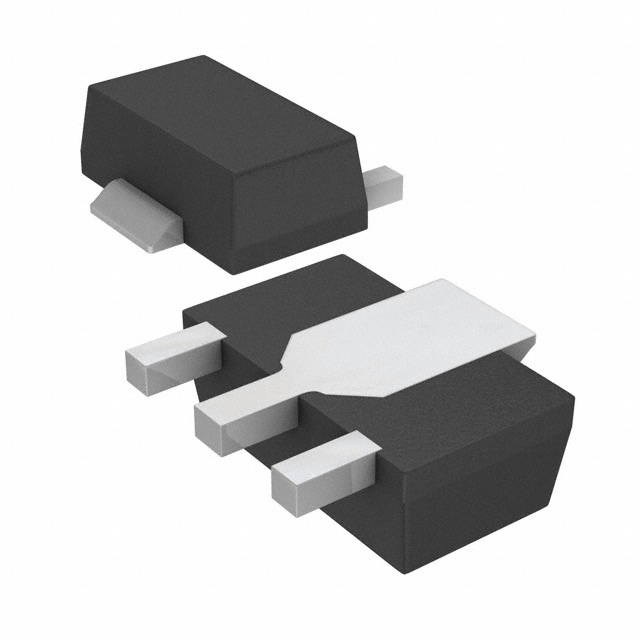

Bipolar (BJT) Transistor NPN 25 V 5 A 120MHz 1.4 W Surface Mount SOT-89
