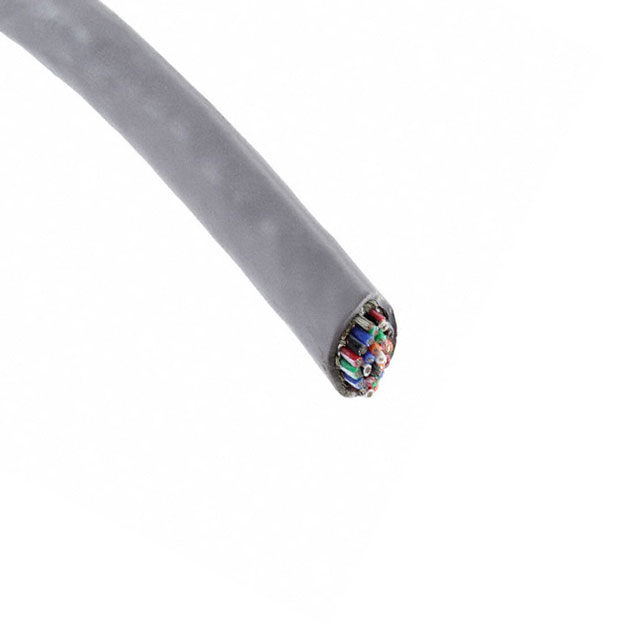

M13525 SL001

Active

ALPHA WIRE

CABLE 25COND 18AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 25COND 18AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	M13525 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.636 in
Jacket (Insulation) Diameter [diameter]	16.15 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.06 in
Jacket (Insulation) Thickness	1.524 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2598
Voltage	300 V
Wire Gauge	18 AWG

Part	Voltage	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length
ALPHA WIRE M13525 SL001	300 V	UL Style 2598	16	30 AWG	25	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Slate	Multi-Conductor	0.636 in	16.15 mm	18 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.06 in	1.524 mm	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.67

General part information

25 Conductor Multi-Conductor Cable Slate 18 AWG 1000.0' (304.8m)
