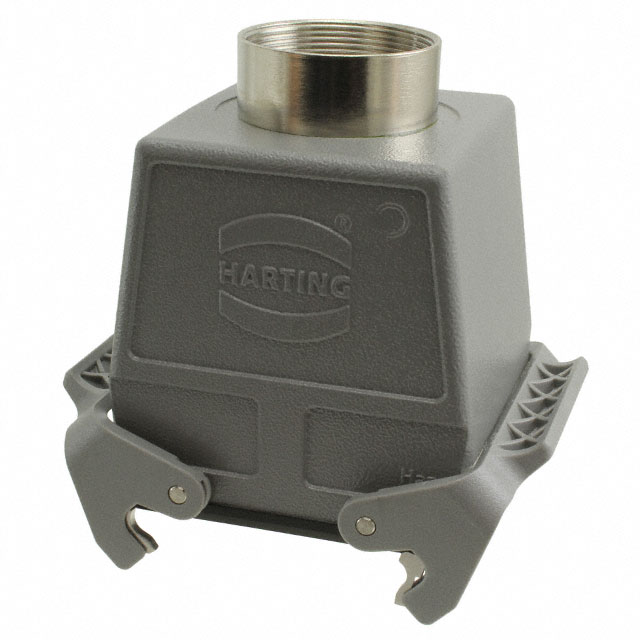

HAN B HOOD COUPLER HC 2 LEVERS PG 36 ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09300320732

Active

HARTING Technology Group

HAN B HOOD COUPLER HC 2 LEVERS PG 36 ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300320732

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	32 B
Size / Dimension [x]	3.701 "
Size / Dimension [x]	94 mm
Size / Dimension [y]	3.248 in
Size / Dimension [y]	82.5 mm
Size / Dimension [z]	96.4 mm
Size / Dimension [z]	3.795 "
Style	Bottom Entry
Thread Size	PG36

09300320 Series

Part	Housing Finish	Housing Material	Thread Size	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Style	Housing Color	Connector Type	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Size
HARTING Technology Group 09300320272	Powder Coated	Aluminum Die Cast	PG36	Feed Through	90 mm	125 mm	87 mm	3.425 in	3.543 in	4.921 in	Side Entry	Gray	Base - Box Mount	Locking Clip (2) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	32 B
HARTING Technology Group 09300320801
HARTING Technology Group 09300320422	Powder Coated	Aluminum Die Cast	PG36		94 mm	94 mm	82.5 mm	3.248 in	3.701 in	3.701 "	Top Entry	Gray	Hood	Locking Clip (2) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	32 B
HARTING Technology Group 09300320522	Powder Coated	Aluminum Die Cast	PG36		94 mm	94 mm	82.5 mm	3.248 in	3.701 in	3.701 "	Side Entry	Gray	Hood	Locking Clip (2) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	32 B
HARTING Technology Group 09300320523	Powder Coated	Aluminum Die Cast	PG42		94 mm	94 mm	82.5 mm	3.248 in	3.701 in	3.701 "	Side Entry	Gray	Hood	Locking Clip (2) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	32 B
HARTING Technology Group 09300320231	Powder Coated	Aluminum Die Cast	PG29		90 mm	125 mm	87 mm	3.425 in	3.543 in	4.921 in	Side Entry	Gray	Base - Box Mount	Locking Clip (2) on Base Bottom	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	32 B
HARTING Technology Group 09300320732	Powder Coated	Aluminum Die Cast	PG36	Cable to Cable	96.4 mm	94 mm	82.5 mm	3.248 in	3.795 "	3.701 "	Bottom Entry	Gray	Hood - Coupling	Locking Clip (2) on Hood Top	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	32 B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 135.28
		10	$ 124.14
		25	$ 119.37
		50	$ 115.39
Newark	Each	1	$ 154.90
		10	$ 146.20
		25	$ 141.85
		50	$ 131.40
		100	$ 124.44

Description

General part information

09300320 Series

Hood - Coupling Connector Bottom Entry PG36 32B IP65 - Dust Tight, Water Resistant
