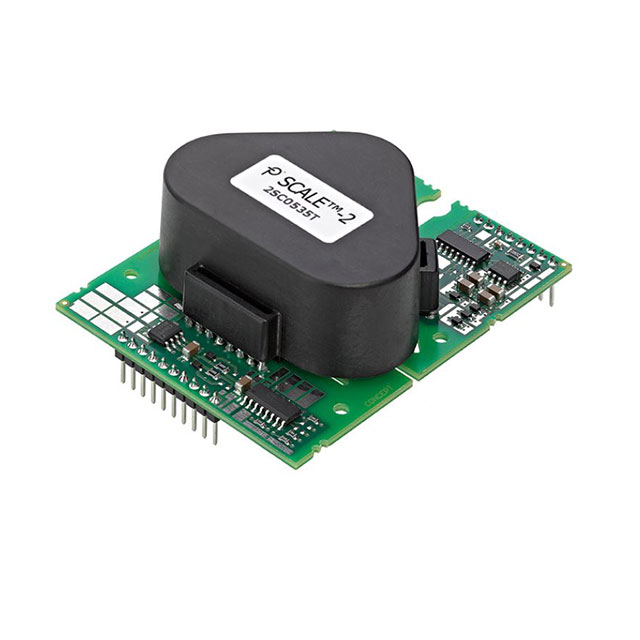

2SC0535T2G0-33

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Search across all available documentation for this part.

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	2SC0535T2G0-33

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	35 A
Current - Peak Output (Source, Sink) [custom]	35 A
Driven Configuration	High-Side, Low-Side
Gate Type	IGBT
High Side Voltage - Max (Bootstrap) [Max]	3300 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-55 C
Package / Case	Module
Rise / Fall Time (Typ) [custom]	20 ns
Rise / Fall Time (Typ) [custom]	25 ns
Supplier Device Package	Module
Voltage - Supply [Max]	15.5 V
Voltage - Supply [Min]	14.5 V

Part	Mounting Type	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]	Gate Type	Driven Configuration	High Side Voltage - Max (Bootstrap) [Max]	Package / Case	Number of Drivers	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Power Integrations 2SC0535T2G0-33	Surface Mount	Independent	85 C	-55 C	IGBT	High-Side Low-Side	3300 V	Module	2	35 A	35 A	14.5 V	15.5 V	Module	20 ns	25 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High-Side or Low-Side Gate Driver IC Module
