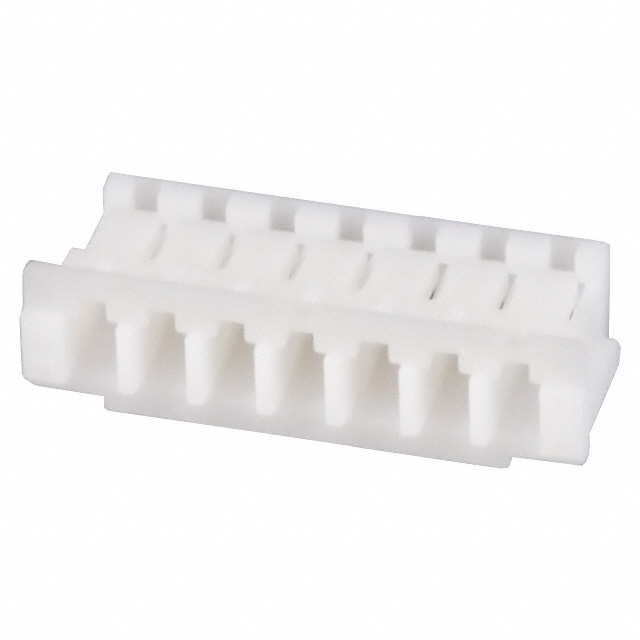

ZHR-7

Active

JST Sales America Inc.

CONN RCPT HSG 7POS 1.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart

ZHR-7

Active

JST Sales America Inc.

CONN RCPT HSG 7POS 1.50MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZHR-7

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	1.5 mm
Pitch [x]	0.059 in

ZHR Series

Part	Mounting Type	Insulation Material	Number of Rows	Contact Type	Color	Note	Number of Positions	Connector Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]
JST Sales America Inc. ZHR-2	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included	2	Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-12	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included	12	Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-10	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included	10	Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-3	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included		Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-5	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included		Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-6	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included	6	Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-4	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included	4	Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-7	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included	7	Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-13	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Natural	Contacts Not Included	13	Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in
JST Sales America Inc. ZHR-2-K	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	1	Female Socket	Black	Contacts Not Included	2	Receptacle	Crimp	-25 °C	85 °C	1.5 mm	0.059 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.13
		10	$ 0.10
		25	$ 0.09
		50	$ 0.08
		100	$ 0.08
		250	$ 0.07
		500	$ 0.06
		1000	$ 0.06
		3000	$ 0.05

Description

General part information

ZHR Series

7 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)

Documents

Technical documentation and resources

Datasheet

JST Prefix Suffix Chart

Datasheet
