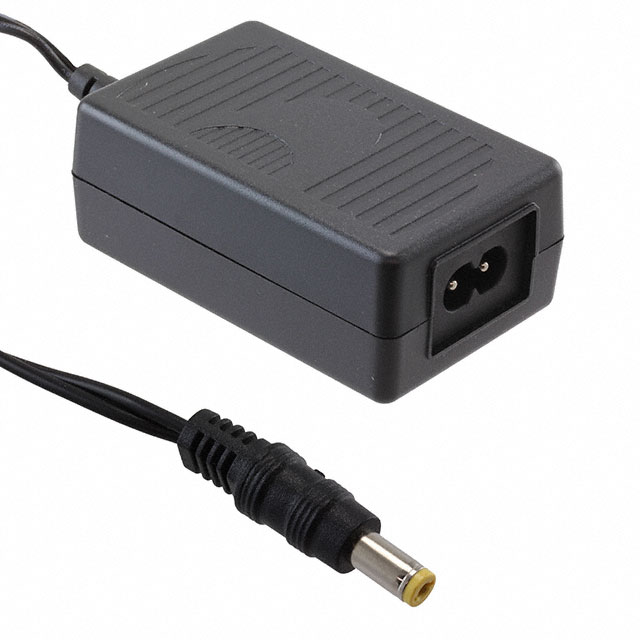

TR9KE2000CCP-N(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 24W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 12V 24W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KE2000CCP-N(R6B)

Applications	ITE (Commercial)
Approval Agency	S-Mark, LPS, CB, SIQ, PSE, RCM, cULus, UKRSepro, VCCI, EAC, CE
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	2 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	24 W
Region Utilized	International
Size / Dimension [x]	3.17 in
Size / Dimension [x]	80.6 mm
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	1.22 in
Size / Dimension [z]	31 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	Current - Output (Max) [Max]	Applications	Form	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Output Connector	Output Connector [diameter]	Output Connector [x]	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	No Load Power Consumption [Max]	Region Utilized	Power (Watts)	Approval Agency	Input Type	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Voltage - Output	Cord Length	Cord Length	Output Connector [z]
GlobTek, Inc. TR9KE2000LCP-N(R6B)	2 A	ITE (Commercial)	Desktop (Class II)	40 °C	0 °C	60950-1	Barrel Plug	2.5 mm 5.5 mm	11 mm	Level VI	3.17 in	80.6 mm	1.22 in	31 mm	1.97 "	50 mm	75 mW	International	24 W	CB CE cULus EAC LPS PSE RCM S-Mark SIQ UKRSepro VCCI	Cord	Positive Center	90 VAC	264 VAC	IEC 320-C8	12 V	60.2 in	1.53 m
GlobTek, Inc. TR9KE2000CCP-N(R6B)	2 A	ITE (Commercial)	Desktop (Class II)	40 °C	0 °C	60950-1	Barrel Plug	2.1 mm 5.5 mm		Level VI	3.17 in	80.6 mm	1.22 in	31 mm	1.97 "	50 mm	75 mW	International	24 W	CB CE cULus EAC LPS PSE RCM S-Mark SIQ UKRSepro VCCI	Cord	Positive Center	90 VAC	264 VAC	IEC 320-C8	12 V	60.2 in	1.53 m	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 24 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
