1762800

Active

Phoenix Contact

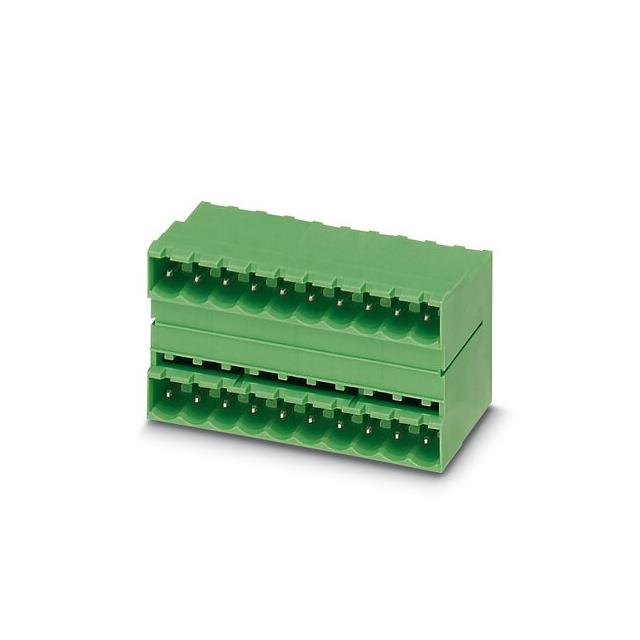

PLUGGABLE TERMINAL BLOCKS 13 POS 5MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 13 POS 5MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics for this part

Specification	1762800

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	10 A
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA), Nylon
Insulation Height	1.122 in
Insulation Height	28.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	26
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	13
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	630 V
Voltage - UL	300 V

Pluggable Terminal Blocks 4 Pos 5mm pitch Through Hole Header

Part	Number of Levels	Mounting Type	Positions Per Level	Material Flammability Rating	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Termination Style	Header Orientation	Voltage - IEC	Number of Positions	Current - IEC	Color	Contact Mating Finish	Features	Housing Material	Contact Tail Length	Contact Tail Length	Voltage - UL	Type
Phoenix Contact 1846726	2	Through Hole	5	UL94 V-0	0.933 in	23.7 mm	5 mm	0.197 in	Solder	90° Right Angle	400 V	10	10 A	Green	Tin	Mating Flange	Polybutylene Terephthalate (PBT)	3.5 mm	0.138 in	300 V	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1762800	2	Through Hole	13	UL94 V-0	1.122 in	28.5 mm	5 mm	0.197 in	Solder	90° Right Angle	630 V	26	10 A	Green	Tin		Polyamide (PA) Nylon	3.5 mm	0.138 in	300 V	Header Male Pins Shrouded (4 Side)
Phoenix Contact 1726444	2	Through Hole	4		0.933 in	23.7 mm	5 mm	0.197 in	Solder	90° Right Angle	250 V	8	10 A	Gray	Tin	Interlocking (Side)					Header Male Pins Shrouded (2 Side)
