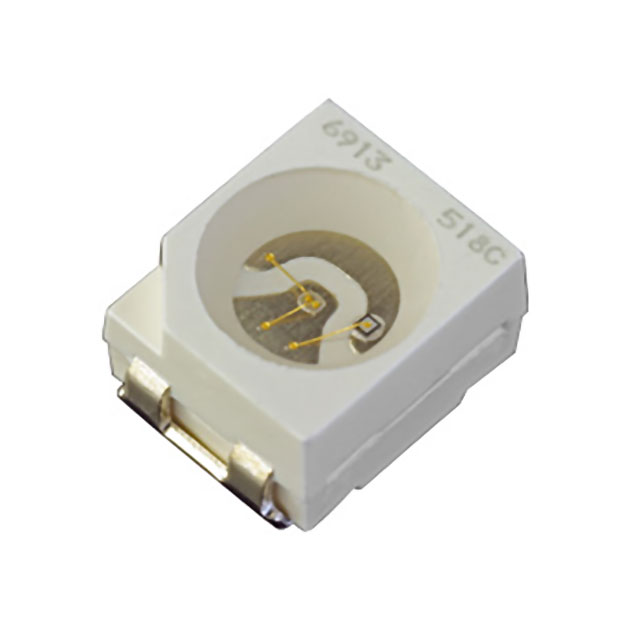

VFGA1104LS-TR
ActiveStanley Electric Co
LED ORANGE CLEAR 2PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
VFGA1104LS-TR
ActiveStanley Electric Co
LED ORANGE CLEAR 2PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VFGA1104LS-TR |
|---|---|
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 910 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.6 V |
| Wavelength - Dominant | 606 nm |
| Wavelength - Peak | 611 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.46 | |||
| 100 | $ 0.30 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.70 | ||
| 10 | $ 0.46 | |||
| 100 | $ 0.30 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 2000 | $ 0.21 | ||
| 6000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
VFGA1104 Series
Orange 606nm LED Indication - Discrete 2.6V 2-PLCC
Documents
Technical documentation and resources
No documents available
