MP1400GC-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 600MA 8CSP
Deep-Dive with AI
Search across all available documentation for this part.
MP1400GC-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 600MA 8CSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP1400GC-P |
|---|---|
| Current - Output | 600 mA |
| Frequency - Switching | 1.5 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Negative |
| Output Type | Adjustable |

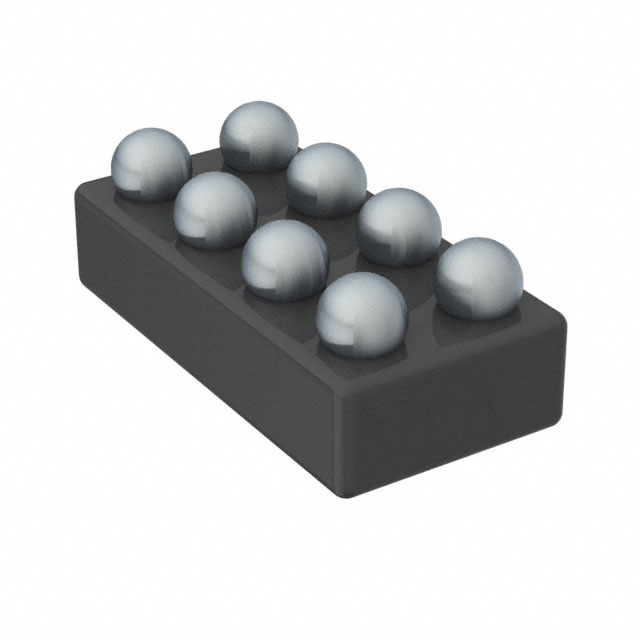

| Package / Case | CSPBGA, 8-UFBGA |
| Supplier Device Package | 8-CSP (0.80x1.60) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 7 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output (Max) [Max] | -6 V |
| Voltage - Output (Min/Fixed) | -1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.73 | |
| 10 | $ 1.55 | |||
| 25 | $ 1.46 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.17 | |||
| Digi-Reel® | 1 | $ 1.73 | ||
| 10 | $ 1.55 | |||
| 25 | $ 1.46 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.17 | |||
| Tape & Reel (TR) | 500 | $ 0.96 | ||
| 1000 | $ 0.89 | |||
| 1500 | $ 0.86 | |||
| 2500 | $ 0.82 | |||
| 3500 | $ 0.80 | |||
| 5000 | $ 0.78 | |||
| 12500 | $ 0.73 | |||
Description
General part information
MP1400 Series
Buck Switching Regulator IC Negative Adjustable -0.9V 1 Output 600mA 8-UFBGA, CSPBGA
Documents
Technical documentation and resources
No documents available
